Keysight N9010A EXA Service Guide 473
Assembly Replacement Procedures
Top Brace and Reference Bracket

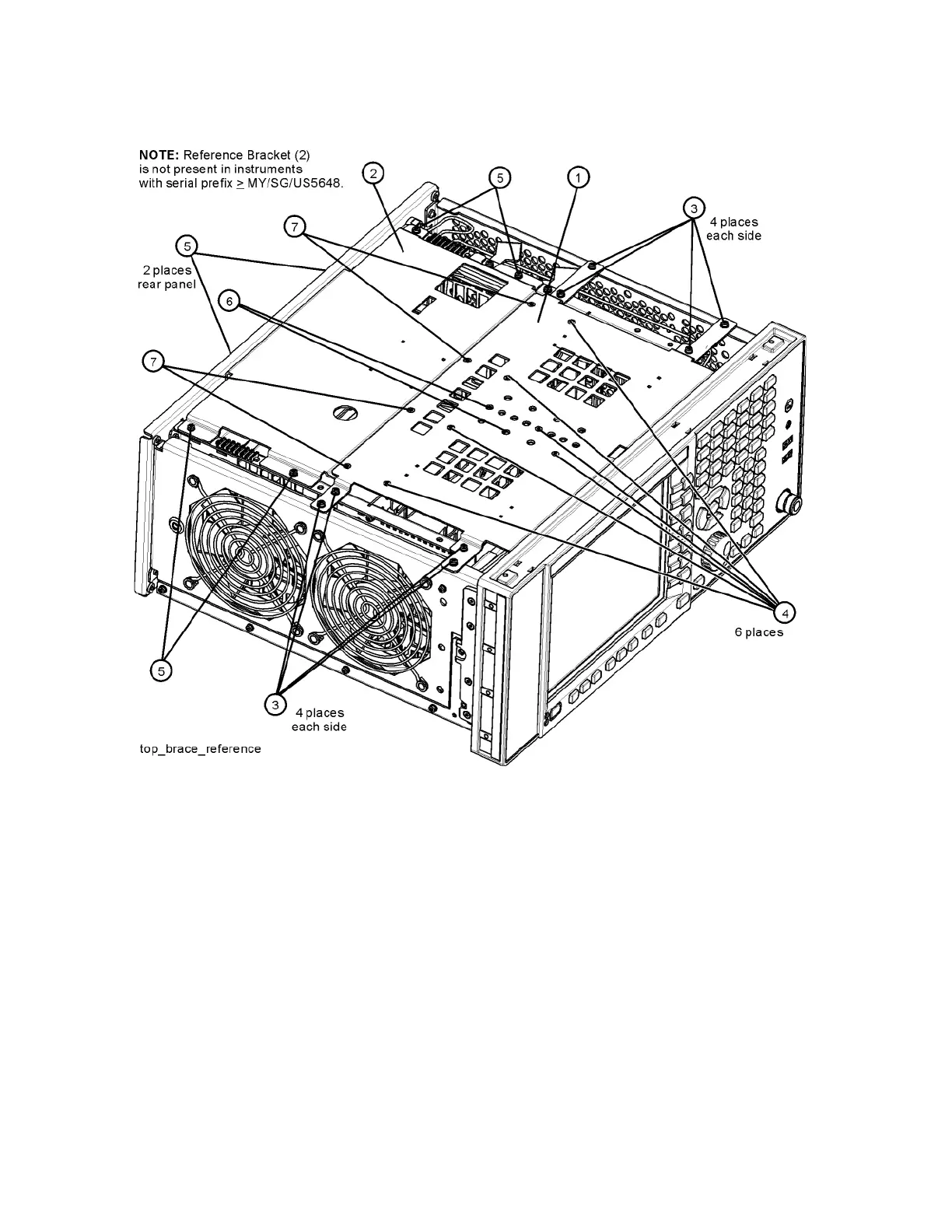

Figure 15-6 Top Brace and Reference Bracket Removal
Replacement
1. Refer to Figure 15-6. To replace the Top Brace or the Reference Bracket,
place them into the correct position and attach the appropriate screws.
Torque to 9 inch-pounds.
