Keysight Technologies X Series Service Guide

Keysight N9010A EXA Service Guide 575
Assembly Replacement Procedures
Front Frame Assembly
Bail Handle Removal (Option PRC)
1. Refer to Figure 15-89. Using the T-20 driver, remove the four screws (1),
two on each side, to detach the Bail Handle Assembly (2) from the front
frame.
2. Using the T-20 driver, remove the two screws (3) on each front bumper
(4) and remove from the front frame.
3. When replacing these parts, torque to 21 inch-pounds.

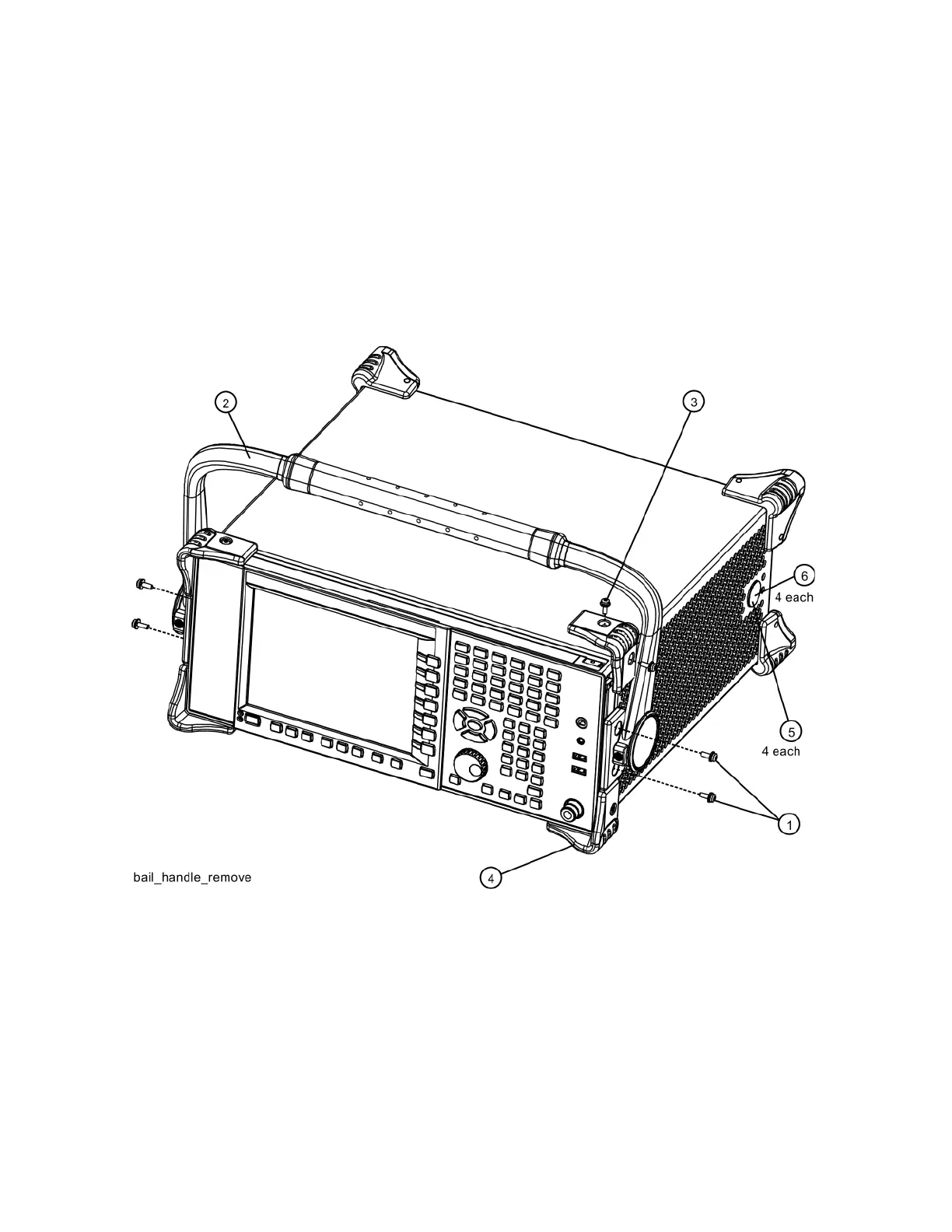

Figure 15-89 Bail Handle and Front Bumpers Removal
