Keysight N9010A EXA Service Guide
5
03
Assembly Replacement Procedur
es
RF Ar
ea (Option 503, 507, 513, 526)
YTF Pr
eselector
Removal
1.
Refer to
Figur
e 15-32
. Remove cables W7 and W8 fr
om the YTF
Pr
eselector
(1
)
.

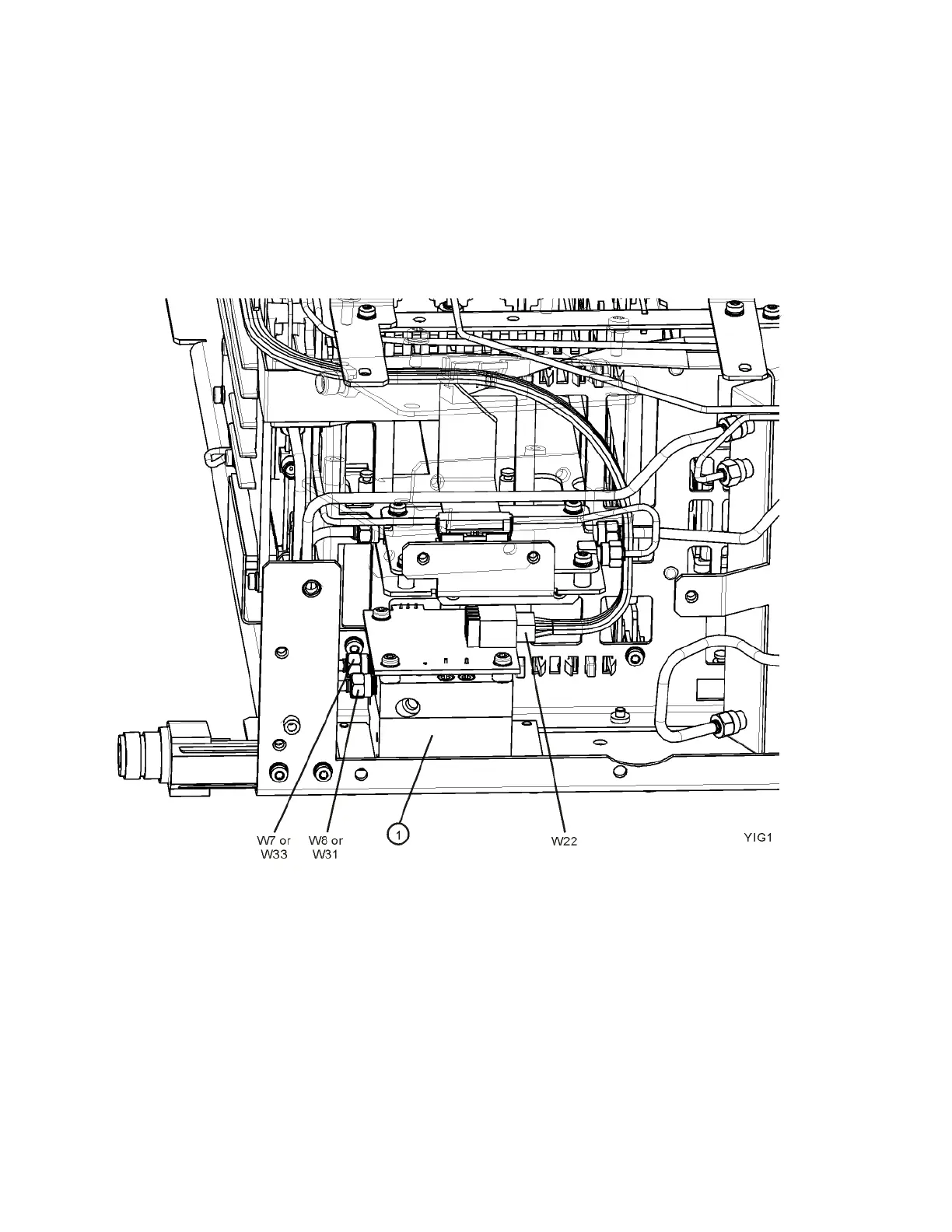

Figure 15-32
YTF Pr
eselector Removal
2.
Remove the wire harness W22.
502
504
