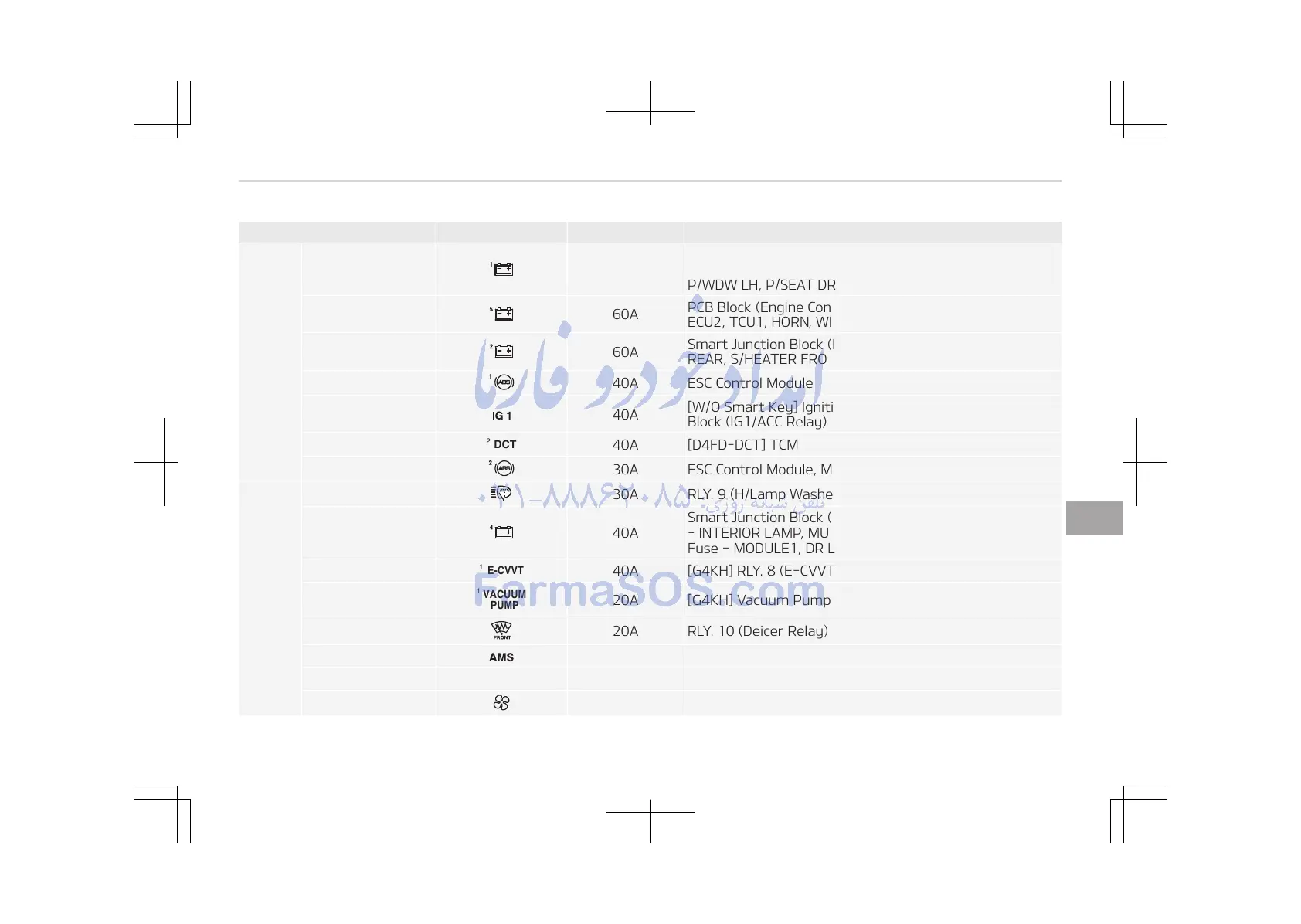

Fuse Name Symbol Fuse Rating Circuit Protected
MULTI
FUSE
B+1 60A
Smart Junction Block (Fuse - TRUNK, SUNROOF2, S/
HEATER REAR, SUNROOF1, P/WDW RH, P/SEAT PASS,
P/WDW LH, P/SEAT DRV)
B+5 60A
PCB Block (Engine Control Relay, Fuse - FUEL PUMP,
ECU2, TCU1, HORN, WIPER1)
B+2 60A
Smart Junction Block (IPS 1, IPS 4, Fuse - FOG LAMP
REAR, S/HEATER FRONT, ECS, AMP)
ABS1
40A ESC Control Module
IG1
40A
[W/O Smart Key] Ignition Switch, [With Smart Key] PCB
Block (IG1/ACC Relay)
DCT2
DCT
2
40A [D4FD-DCT] TCM
ABS2 30A ESC Control Module, Multipurpose Check Connector
FUSE
H/Lamp Washer
30A RLY. 9 (H/Lamp Washer Relay)
B+4
40A
Smart Junction Block (Leak Current Autocut Device Fuse
- INTERIOR LAMP, MULTI MEDIA, MEMORY2, MEMORY1,
Fuse - MODULE1, DR LOCK, SMART KEY, BRAKE SWITCH)
E-CVVT 1
E-CVVT
1
40A [G4KH] RLY. 8 (E-CVVT Relay)
VACUUM PUMP 1
VACUUM
PUMP
1
20A [G4KH] Vacuum Pump
DEICER 20A RLY. 10 (Deicer Relay)
AMS
10A Battery Sensor
E-CVVT 2
E-CVVT
2
20A [G4KH] PCM
A/CON 10A A/C Control Module
