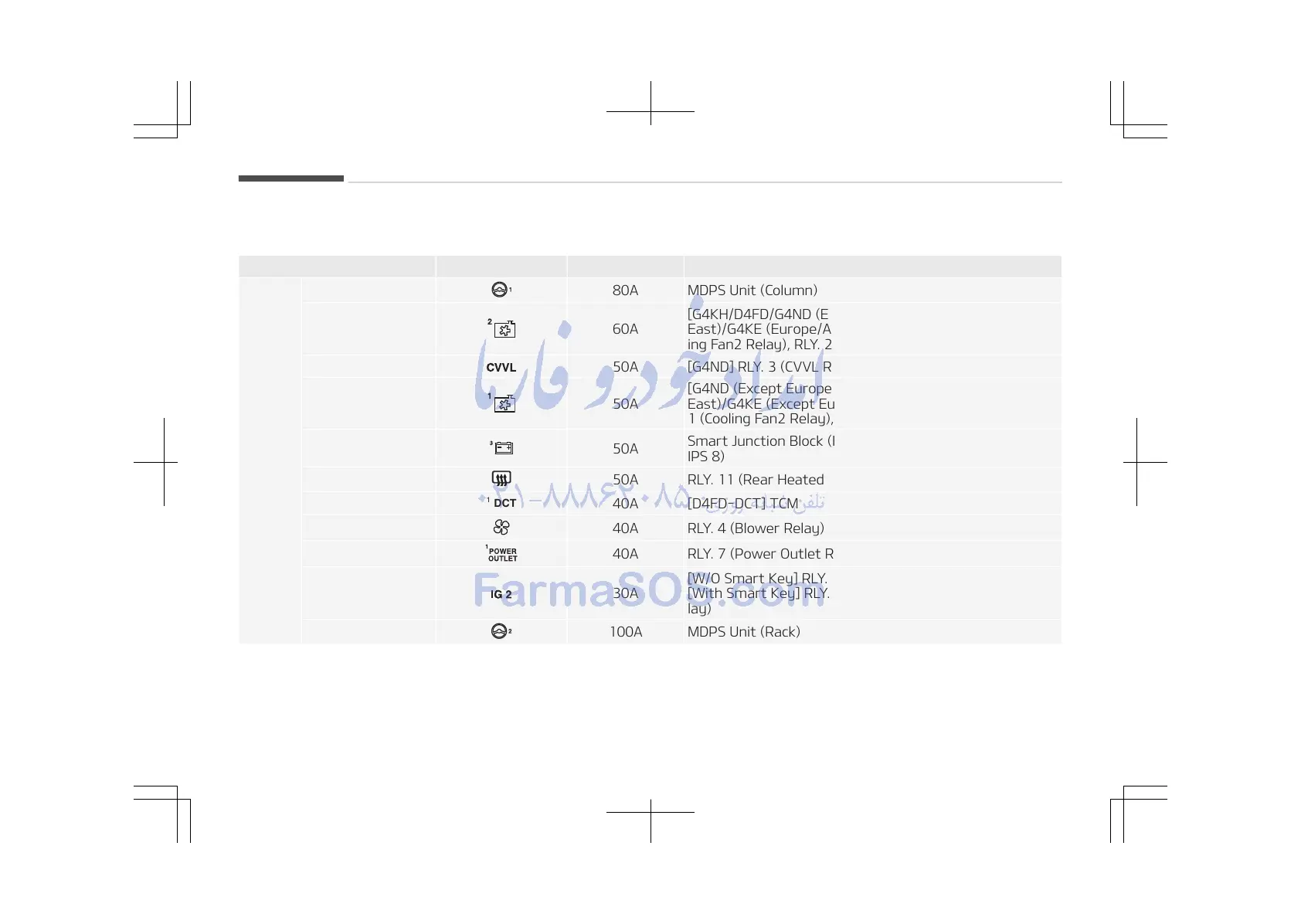

Engine room compartment fuse panel
Fuse Name Symbol Fuse Rating Circuit Protected
MULTI
FUSE
MDPS 1 80A MDPS Unit (Column)
COOLING FAN 2
60A
[G4KH/D4FD/G4ND (Europe/Australia)/G4NA (Middle
East)/G4KE (Europe/Australia/Middle East)] RLY. 1 (Cool‐
ing Fan2 Relay), RLY. 2 (Cooling Fan1 Relay)
CVVL 50A [G4ND] RLY. 3 (CVVL Relay)
COOLING FAN 1 50A
[G4ND (Except Europe/Australia)/G4NA (Except Middle
East)/G4KE (Except Europe/Australia/Middle East)] RLY.
1 (Cooling Fan2 Relay), RLY. 2 (Cooling Fan1 Relay)
B+3 50A
Smart Junction Block (IPS 2 (IPS 5), IPS 3 (IPS 6), IPS 7,
IPS 8)
REAR HEATED 50A RLY. 11 (Rear Heated Relay)
DCT 1
40A [D4FD-DCT] TCM
BLOWER 40A RLY. 4 (Blower Relay)
POWER OUTLET1
40A RLY. 7 (Power Outlet Relay)
IG2
30A
[W/O Smart Key] RLY. 5 (Start Relay), Ignition Switch,
[With Smart Key] RLY. 5 (Start Relay), PCB Block (IG2 Re‐
lay)
MDPS 2
100A MDPS Unit (Rack)
Maintenance
