Kia Optima 2017 - Front Fog Lamp

3. When aiming the low beam, vertical aiming should be adjusted after adjusting the horizontal aiming.
4. If head lamp leveling device is equipped, adjust the head lamp leveling device switch with 0 positions.

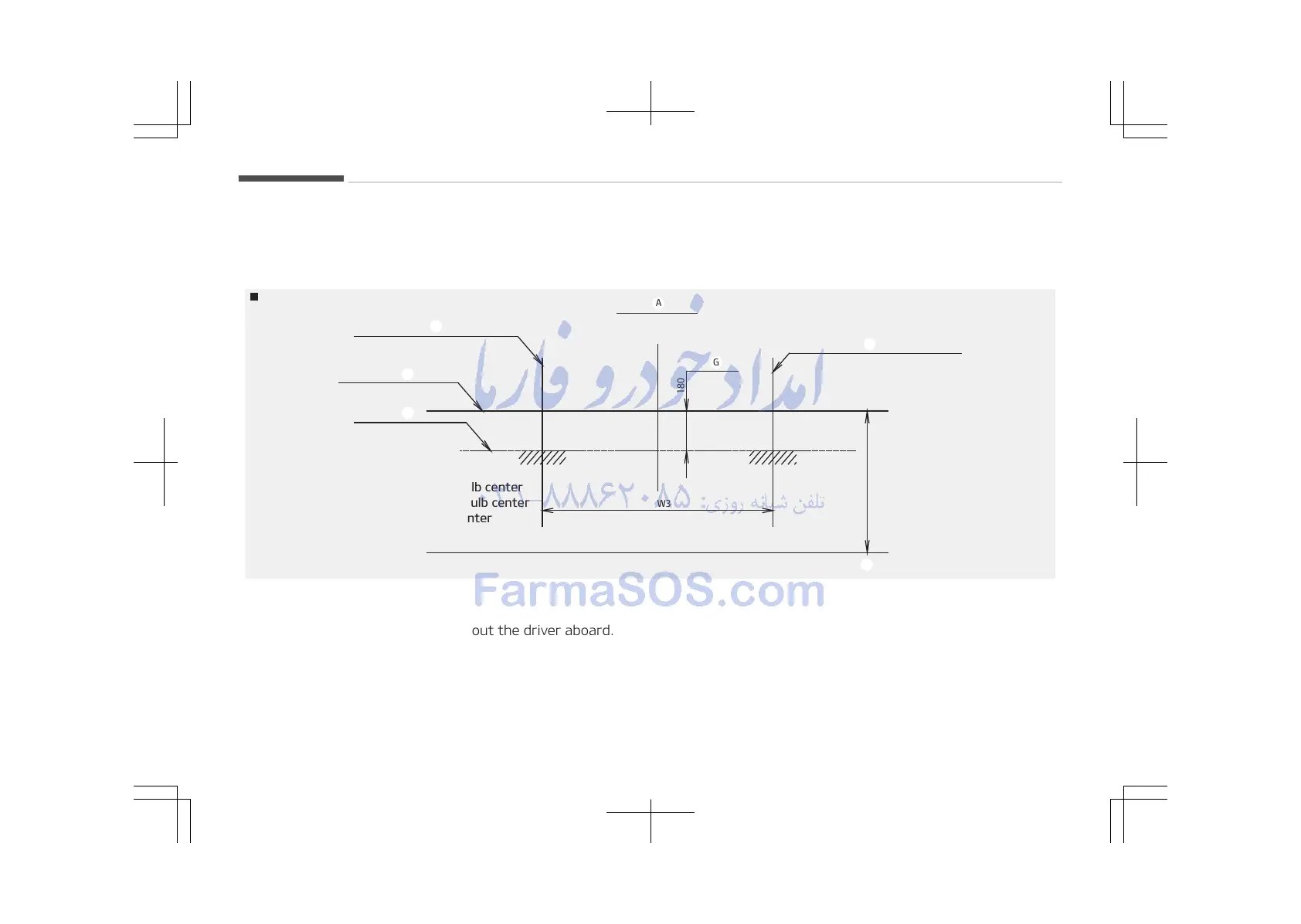

A: Vehicle axis
B: Vertical line of the left fog lamp bulb center
C: Vertical line of the right fog lamp bulb center
D: Horizontal line of fog lamp bulb center
E: Ground
F: Cut-Off line
G: Upper limit
Based on 10 m screen
OJF075109L
E
C
G
A
B
D
F
H3
W3
180
Front fog lamp
1. Turn the front fog lamp on without the driver aboard.
2. The cut-off line should be projected in the allowable range (shaded region).
Maintenance
8-132
