Kia Optima 2017 - Head Lamp Low Beam

Head lamp low beam (LHD Vehicle)
1. Turn the low beam on without driver aboard.
2. The cut-off line should be projected in the cut-off line shown in the picture.
3. When aiming the low beam, vertical aiming should be adjusted after adjusting the horizontal aiming.
4. If head lamp leveling device is equipped, adjust the head lamp leveling device switch with 0 positions.

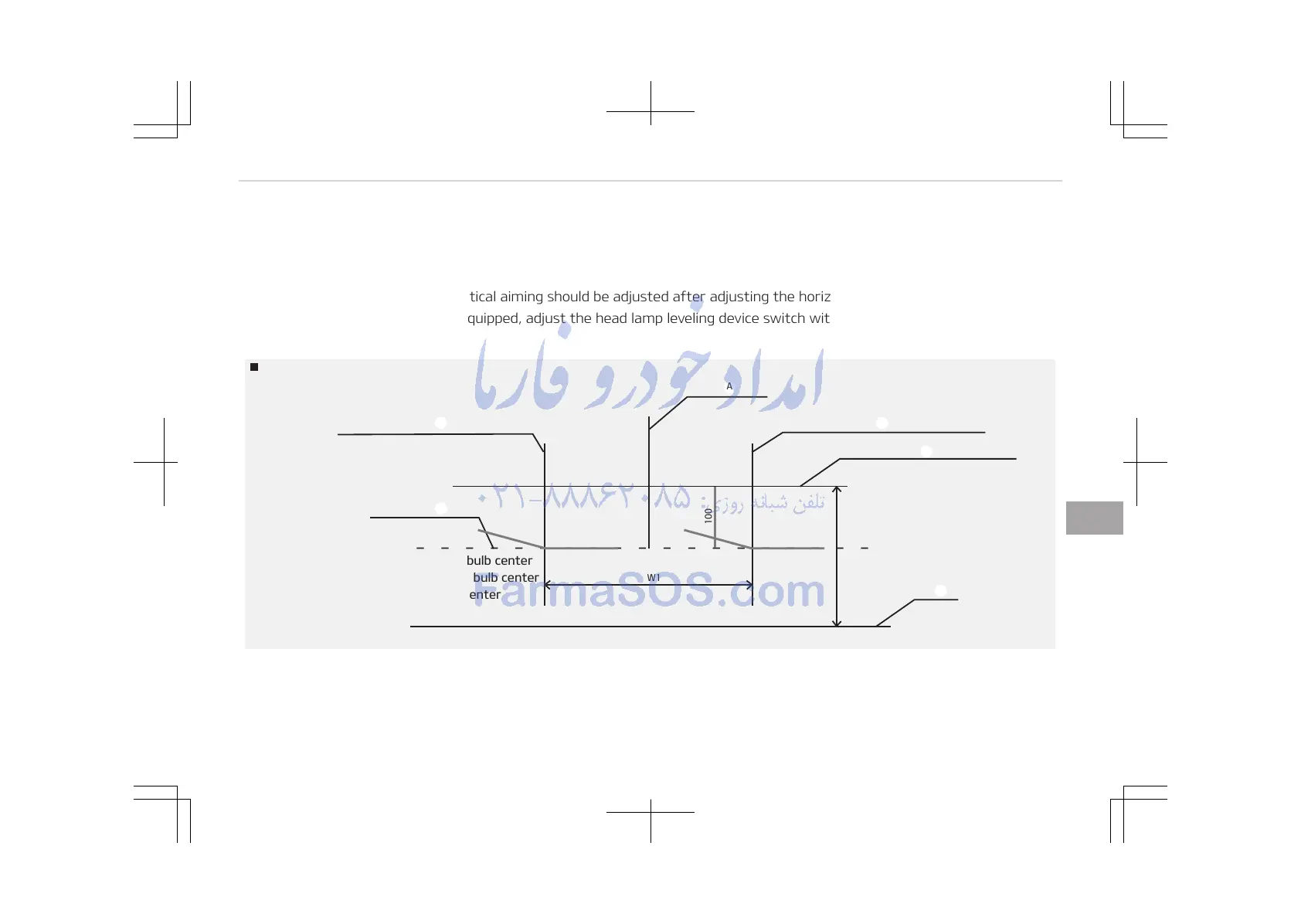

A: Vehicle axis
B: Vertical line of the left head lamp bulb center
C: Vertical line of the right head lamp bulb center
D: Horizontal line of head lamp bulb center
E: Ground
F: Cut-Off line
Based on 10 m screen
OJF075108L
E
C
A
B
D
F
H1
W1
100
Head lamp low beam (RHD Vehicle)
1. Turn the low beam on without driver aboard.
2. The cut-off line should be projected in the cut-off line shown in the picture.
8-131
8
Maintenance
