Unit: mm (in)
Vehicle condition
Front Fog lamp (Bulb type) Front Fog lamp (LED type)
Ground Height
Distance between
lamps
Ground Height
Distance between
lamps
H3 W3 H3' W3'
Without driver 344 (13.5) 1002 (39.4) 344 (13.5) 1002 (39.4)
With driver 335 (13.2) 1002 (39.4) 335 (13.2) 1002 (39.4)

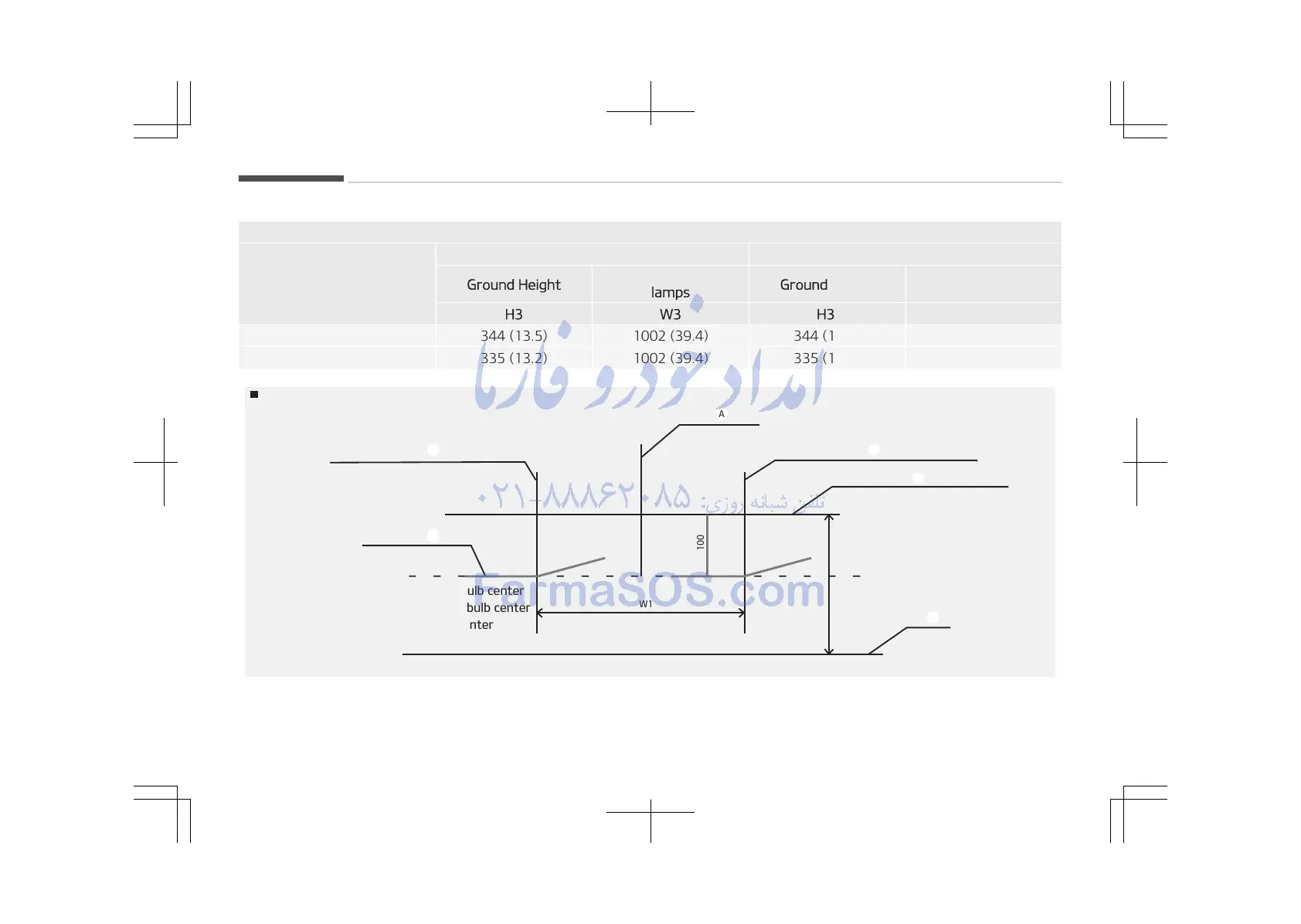

A: Vehicle axis
B: Vertical line of the left head lamp bulb center
C: Vertical line of the right head lamp bulb center
D: Horizontal line of head lamp bulb center
E: Ground
F: Cut-Off line
Based on 10 m screen
E
C
A
B
D
F
H1
W1
100
OJF075107L
Maintenance
8-130
