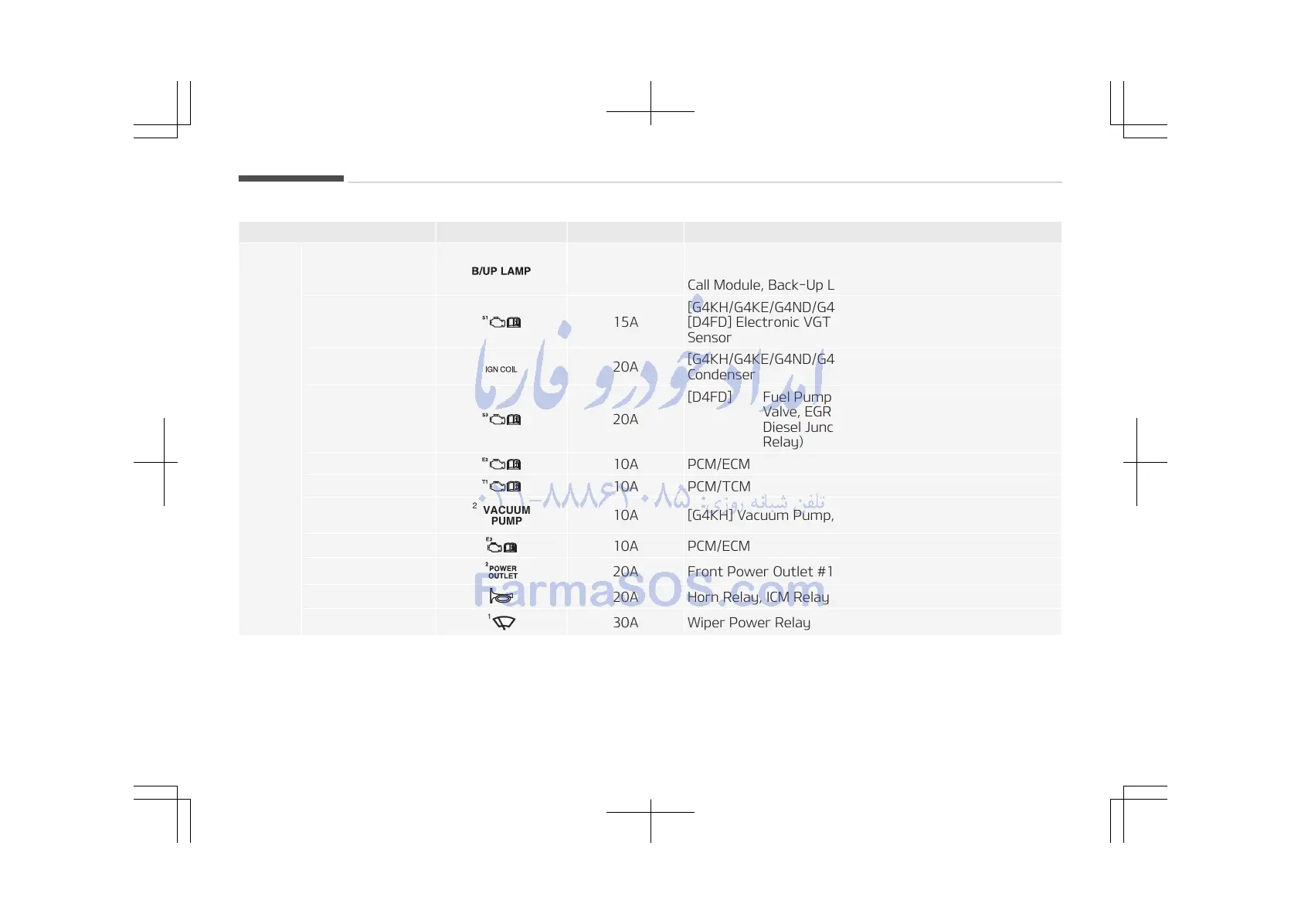

Fuse Name Symbol Fuse Rating Circuit Protected
FUSE
B/UP LAMP 10A
PCM/TCM, Transaxle Range Switch, Audio, Electro Chro‐
mic Mirror, Rear Combination Lamp (IN) LH/RH, MTS E-
Call Module, Back-Up Lamp Switch (M/T)
SENSOR 1 15A
[G4KH/G4KE/G4ND/G4NA] Oxygen Sensor (Up/Down)
[D4FD] Electronic VGT Actuator, PM (Particulate Matter)
Sensor
IGN COIL 20A
[G4KH/G4KE/G4ND/G4NA] Ignition Coil #1/#2/#3/#4,
Condenser
SENSOR 3 20A
[D4FD] Fuel Pump Relay, Fuel Pressure Regulating
Valve, EGR Cooling Bypass Solenoid Valve,
Diesel Junction Block (RLY. 1 - Fuel Heater
Relay)
ECU 2 10A PCM/ECM
TCU 1 10A PCM/TCM
VACUUM PUMP2
10A [G4KH] Vacuum Pump, Vacuum Switch
ECU 3
10A PCM/ECM
POWER OUTLET2
20A Front Power Outlet #1
HORN
20A Horn Relay, ICM Relay Box (Burglar Alarm Horn Relay)
WIPER 1
