11.FINAL REDUCTION/
TRANSMISSION SYSTEM
11-6
MXU 500

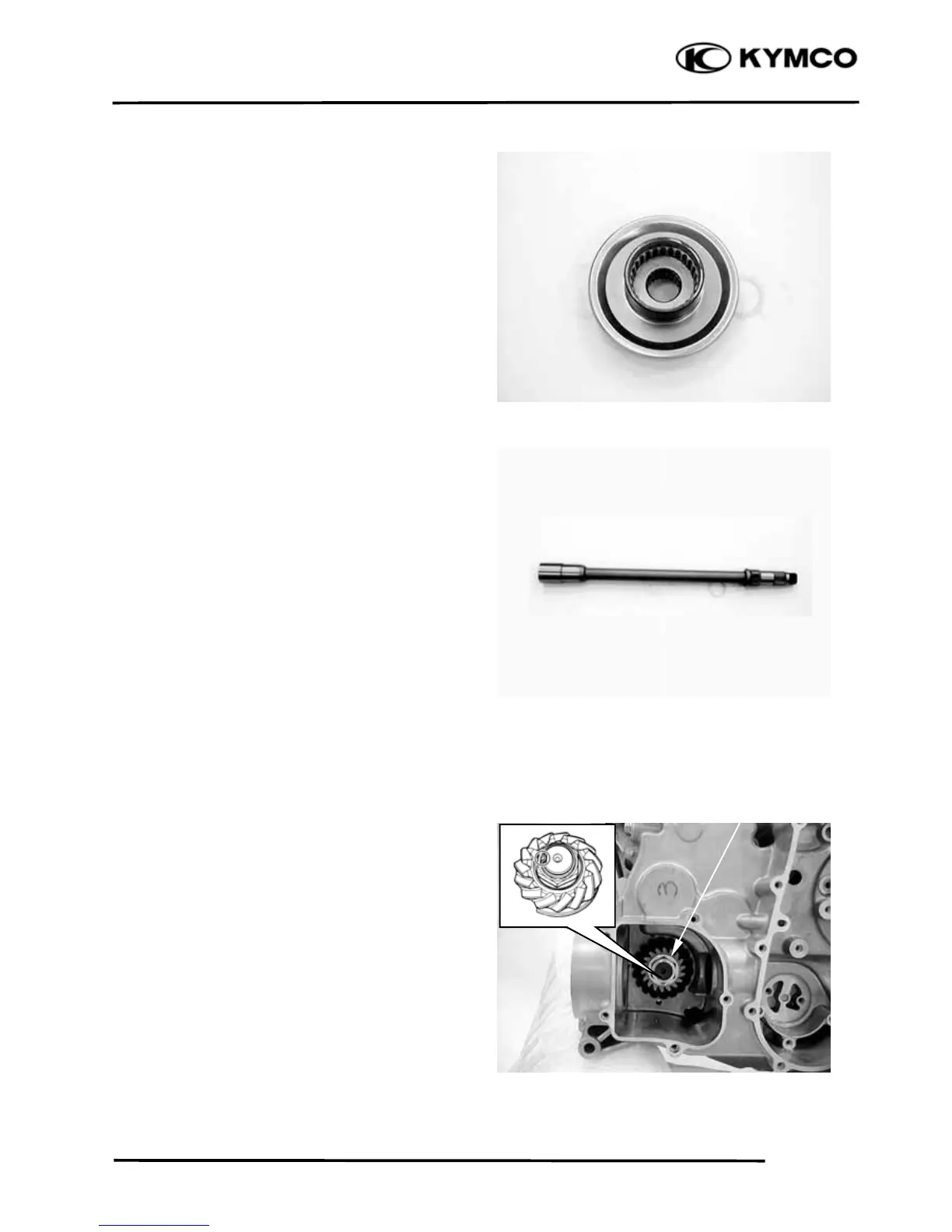

Inspect the rear middle joint splines for wear
or damage.
Inspect the output shaft splines for wear or
damage.
INSTALLATION
Install the shim and secondary drive bevel
gear.
Holder the driven pulley by using the special
tool, then install and tighten the nut to the
specified torque.
Torque:
14 kgf-m (140 N-m, 100.8 lbf-ft) Apply oil
Special tool:
Y-type holder A120E00056
Stake the nut with a center punch.
Secondary Drive Bevel Gear/Shi
To Next Page
