11.FINAL REDUCTION/
TRANSMISSION SYSTEM
11-7
MXU 500

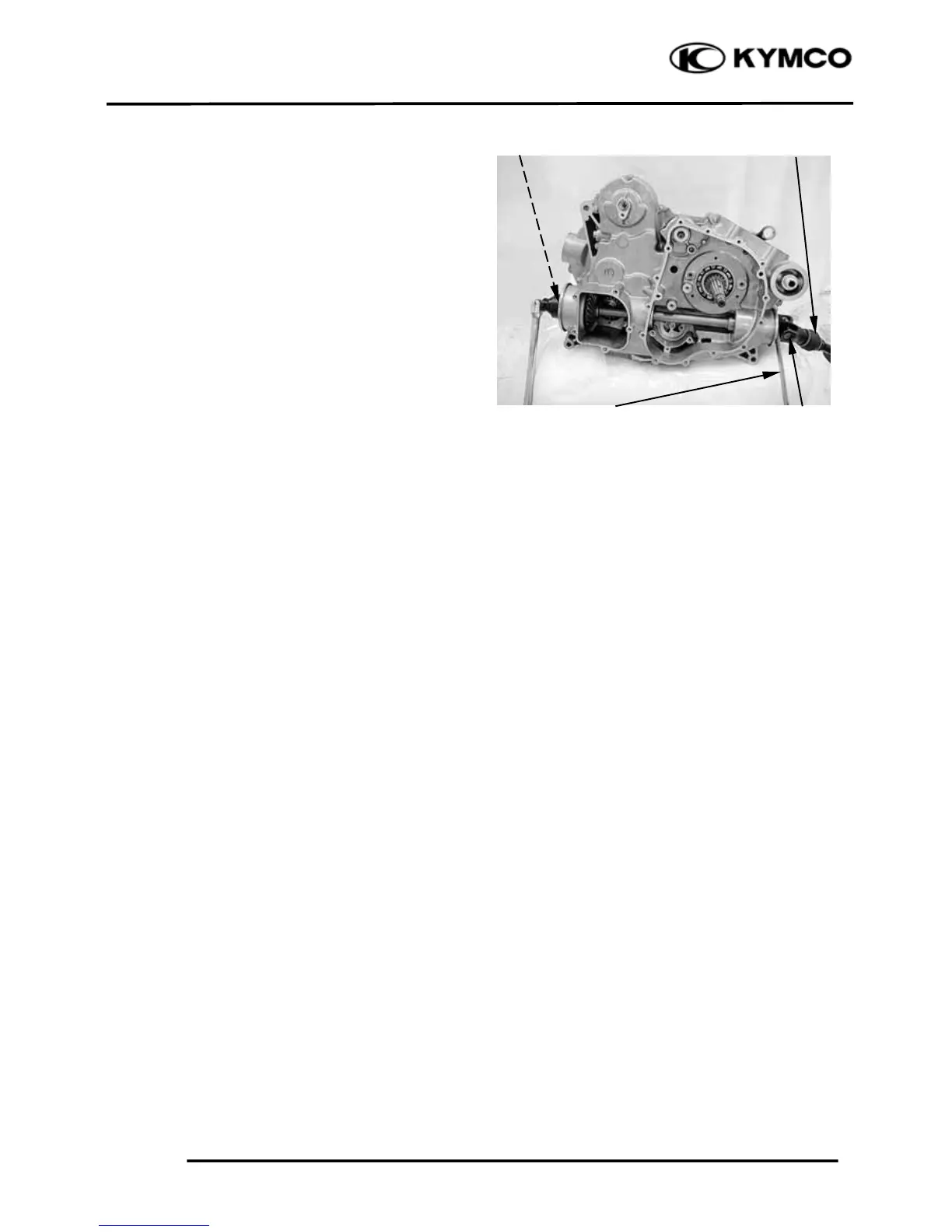

Install the output shaft, secondary driven
bevel gear and shim
Install the rear middle joint.
Install the front drive shaft.
Hold universal joint nut by using a suitable
bar, then install and tighten the rear middle
joint nut to the specified torque.
Torque:
14 kgf-m (140 N-m, 100.8 lbf-ft) Apply oil
Remove the front drive shaft.
Bar Universal Join
