13. DRIVE TRAIN
13-8
MXU 500

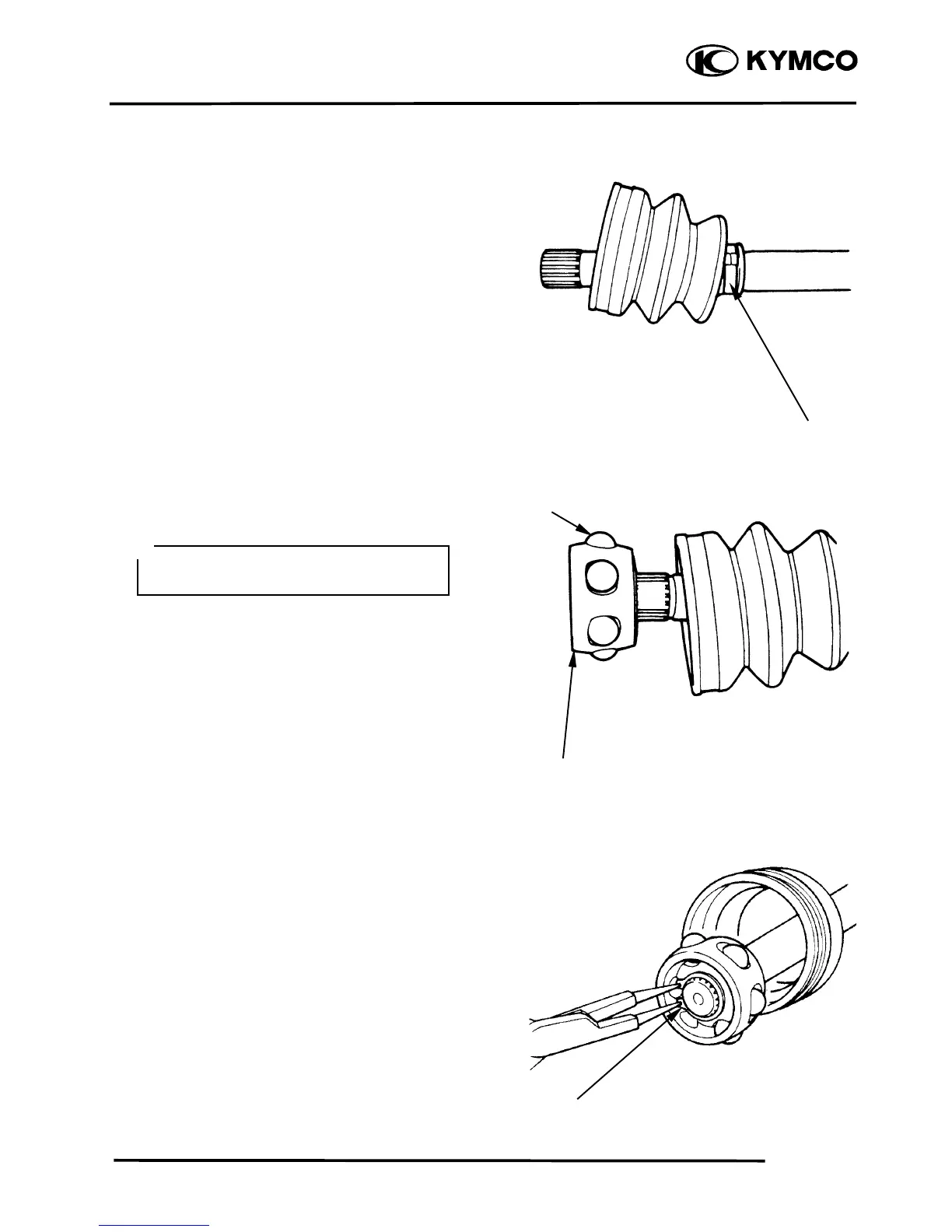

Fit a boot on the drive shaft end, fitting the
small diameter side of the boot to the shaft
groove, fix its end with a new band.
Install the cage on the shaft.
Install the snap ring to the groove on the
drive shaft.
Band
Snap Ring
Large Diameter Side
Install the cage with the large diamete
r
side facing the shaft end.
＊
Cage
