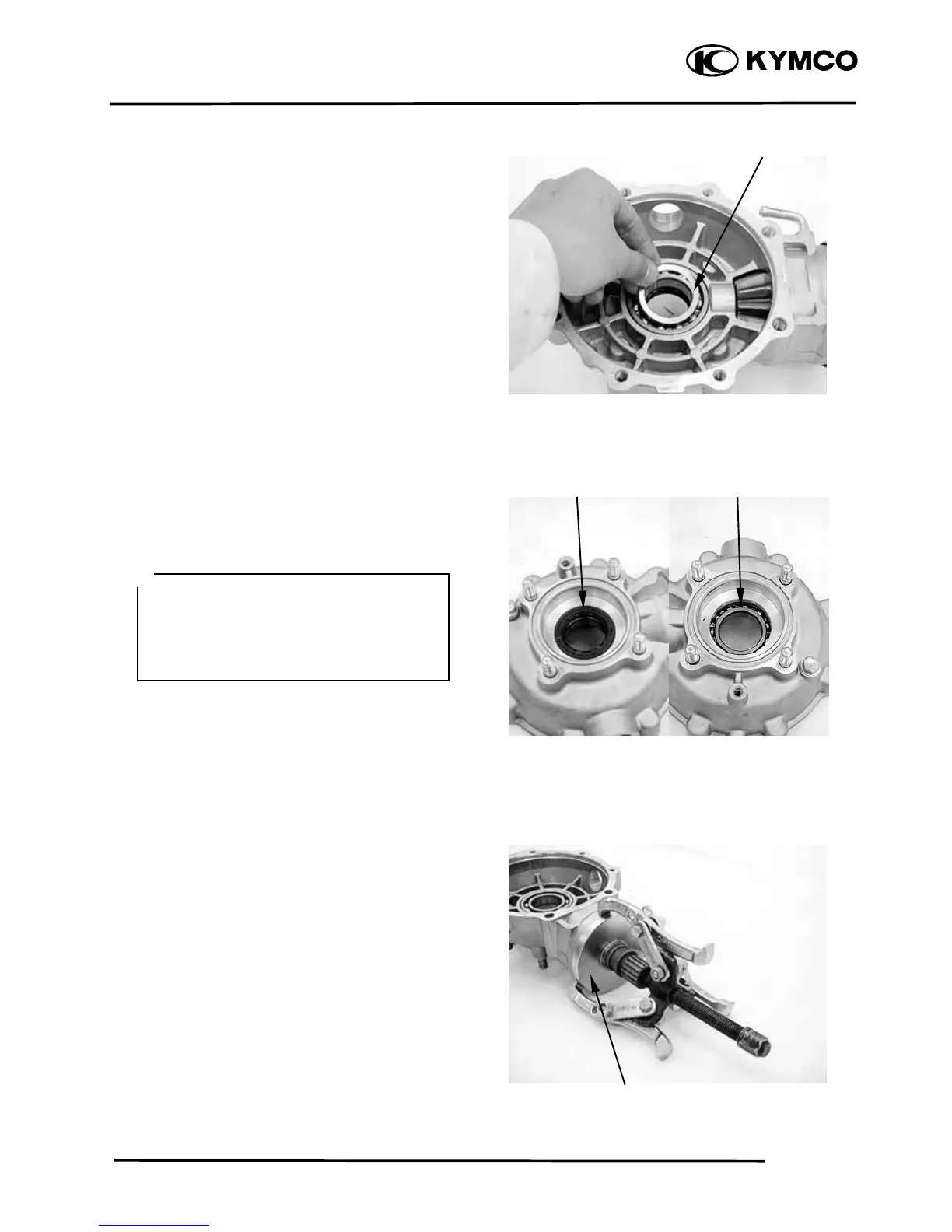

Remove the left ring gear shim.
Remove the oil seal, then remove the
bearing from the case by using a proper
pipe.
Remove the water proof plate by using a
commercially available puller.
Shi
m
Water Proof Plate
Oil Seal Bearing
Ɣ If there is no abnormal condition, the
oil seal or bearing removal is not
necessary
Ɣ The removed oil seal and bearing must
be replaced with new ones.
＊
