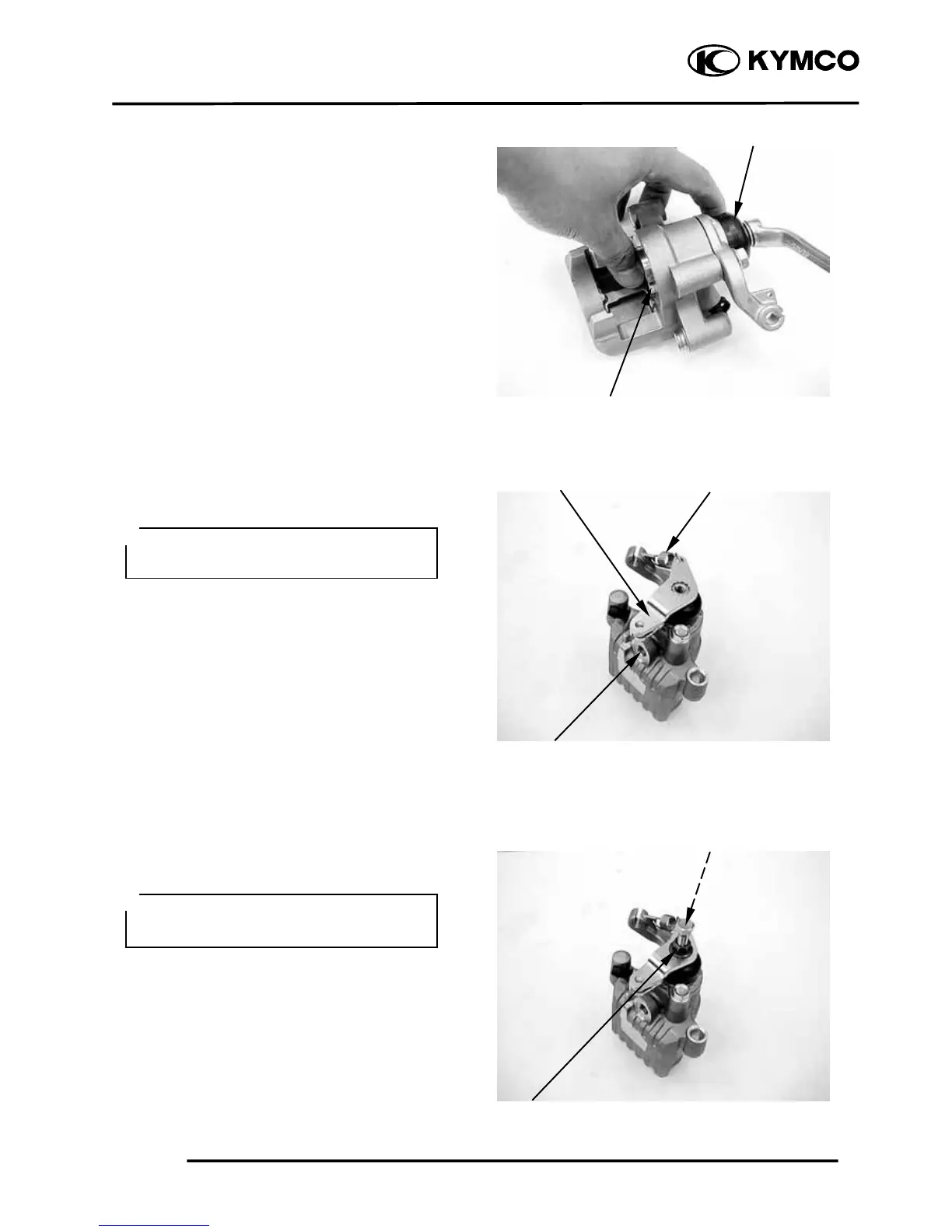

Press the piston and turn the brake shaft
counterclockwise to expand boot, then the
brake shaft does not touch piston.
Install the parking brake arm and spring.
Install the adjusting bolt and lock nut.
Dust Boo
t
Piston
Adjusting Bol
t
Lock Nu
t
Parking Brake Arm Spring
Brake Fluid Inlet hole
Align the parking brake arm with the
brake fluid inlet hole as shown.
＊
Do not turn in the adjusting too much
and do not tighten the lock nut.
＊
