19. STARTER SYSTEM
19-15
MXU 500

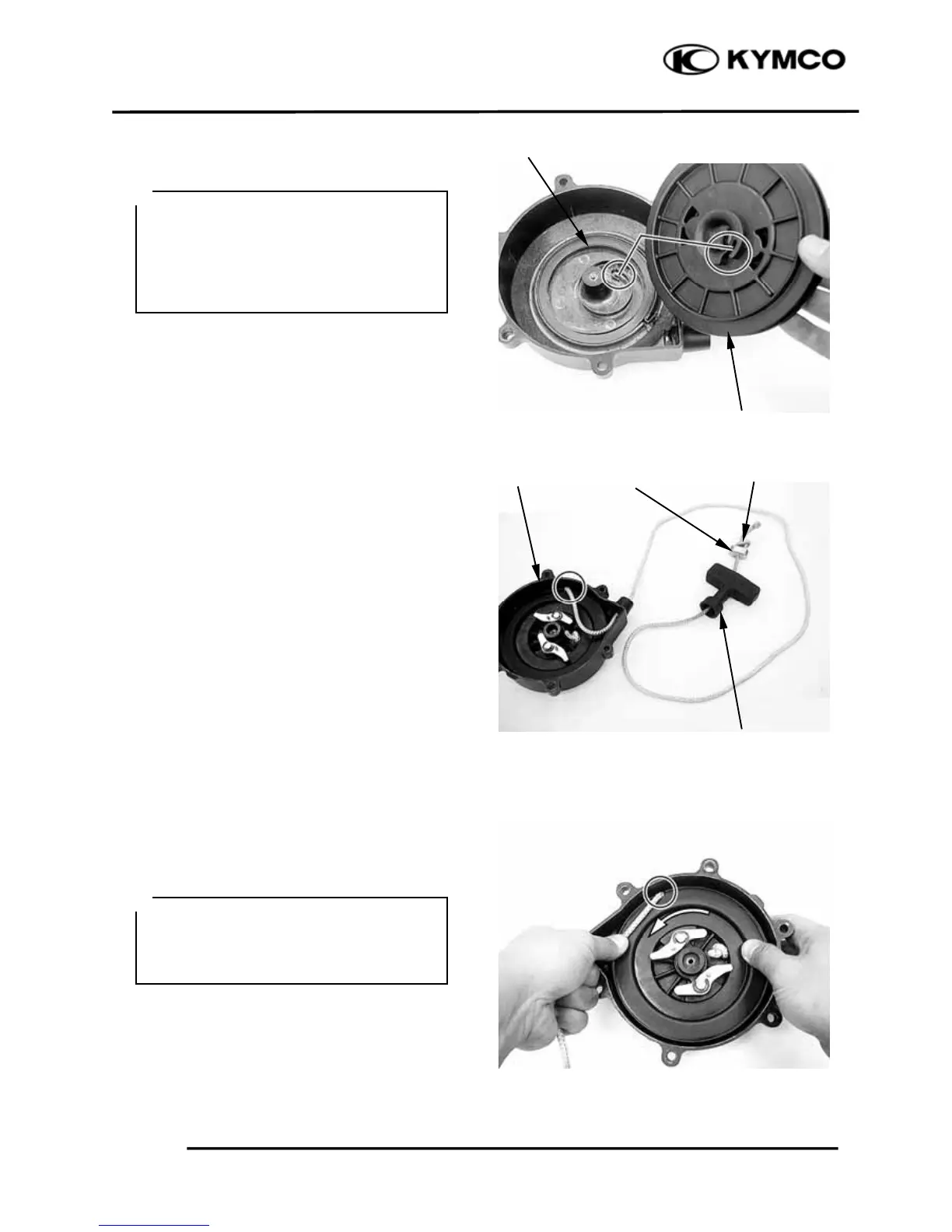

Install the reel.
Hook the rope onto the hook part of the reel,
then pass the rope through the recoil starter
housing, handle and collar.
Make a knot above the collar.
Hook the rope onto the hook part of the reel,
turn the reel counterclockwise three or four
times with the rope.
Coil Spring
Reel
Ɣ Wear hand and eye protection when
installing the reel, since the spring
may quickly unwind and cause and
injury.
Ɣ Engage the part of the reel with coil
spring end.
＊
Housing Collar Kno
t
Handle
Wear hand and eye protection when
assembling the recoil starter, since the
spring may quickly unwind and cause
and injury.
＊
