Rear Panel of DVR
Flashback3 & Flashback HD User’s Guide
Page 4 L3 Mobile-Vision  6.23.2017

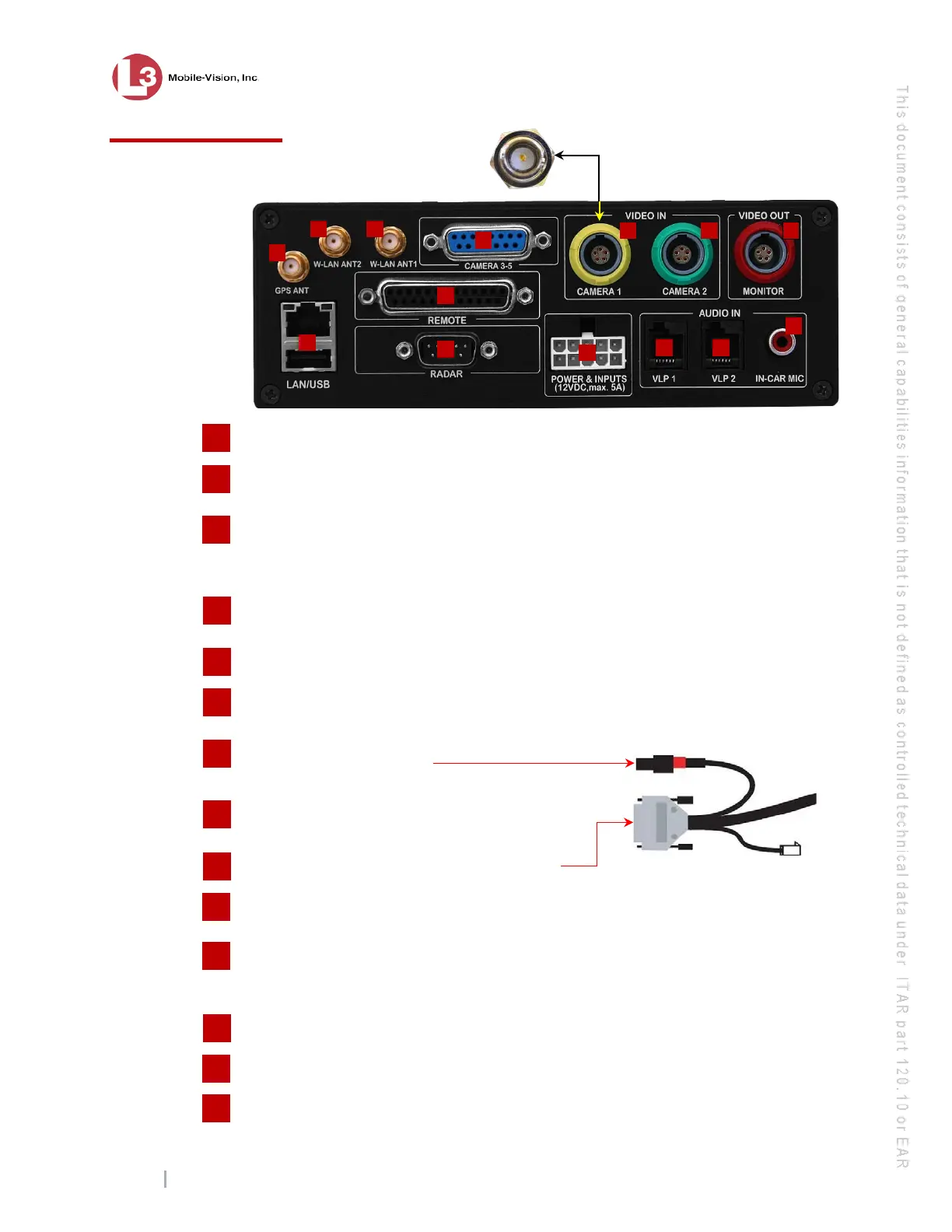

Rear Panel of DVR
GPS ANT. Input for GPS wire on antenna.
W-LAN ANT2. Input for W-LAN2 wire on Dual WiFi/GPS antenna.
W-LAN ANT1. If you’ve purchased the standard WiFi/GPS antenna, this is the input
for the W-LAN wire. If you’ve purchased the Dual WiFi/GPS antenna, this is the
input for the W-LAN1 wire.
CAMERA 3-5. Input for 15-pin D connector used to connect up to three Bullet cameras
using a special three-camera breakout cable.
CAMERA 1. Input for forward facing Forward-facing zoom camera
CAMERA 2. Input for optional Backseat camera
MONITOR. Connection for Flashback monitor
(from
REMOTE connector)
LAN/USB. Input for ethernet LAN cable (top)
and USB drive (bottom).
REMOTE. Connection for Flashback monitor
RADAR. Input for radar unit
POWER & INPUTS (12VDC, max 5A). Connection for main harness, which houses the
following wires: power, ground, lights, siren interface, brakes input, ignition input,
chassis ground, and auxiliary inputs
VLP1. Input for VLP2 or VLX charging station.
VLP2. Input for second VLP2 or VLX charging station.
IN-CAR MIC. Input for wired rear seat microphone.
2
3
4
5
6
7
8
9
10
12
1
5
8
9
12
1
2 3
4
6 7
10
11
11
13
13
14
