Lexmark C925 - Page 150

To Next Page

To Previous Page

4-6 Service Manual

5041-030

Go Back

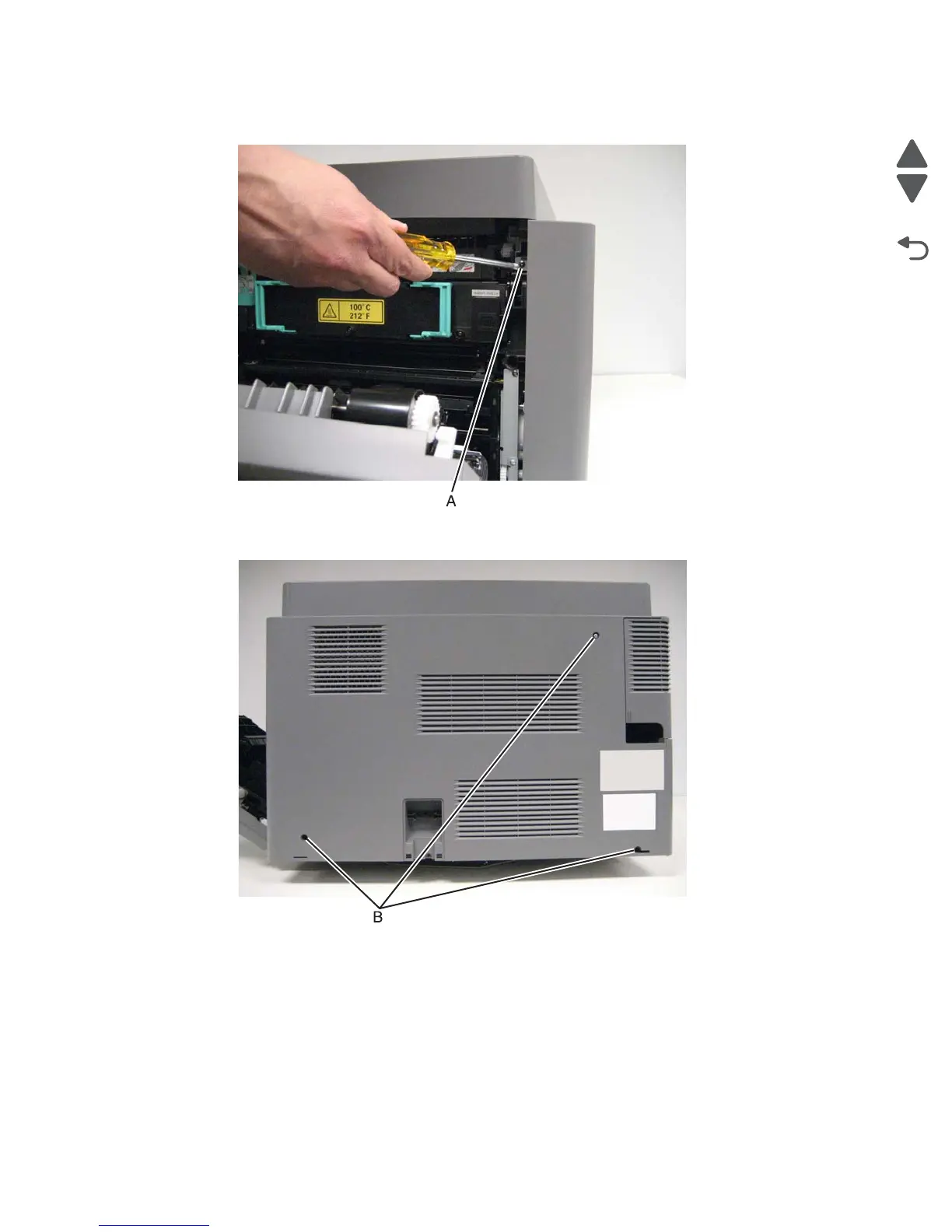

3. Open the duplex and remove the screw (A).

4. Remove the three screws (B) on the rear side of the printer.

5. Tilt the rear cover back.
