Theta sensor removal

1. Remove the LVPS. See “Low volt power supply removal” on page 4-42.

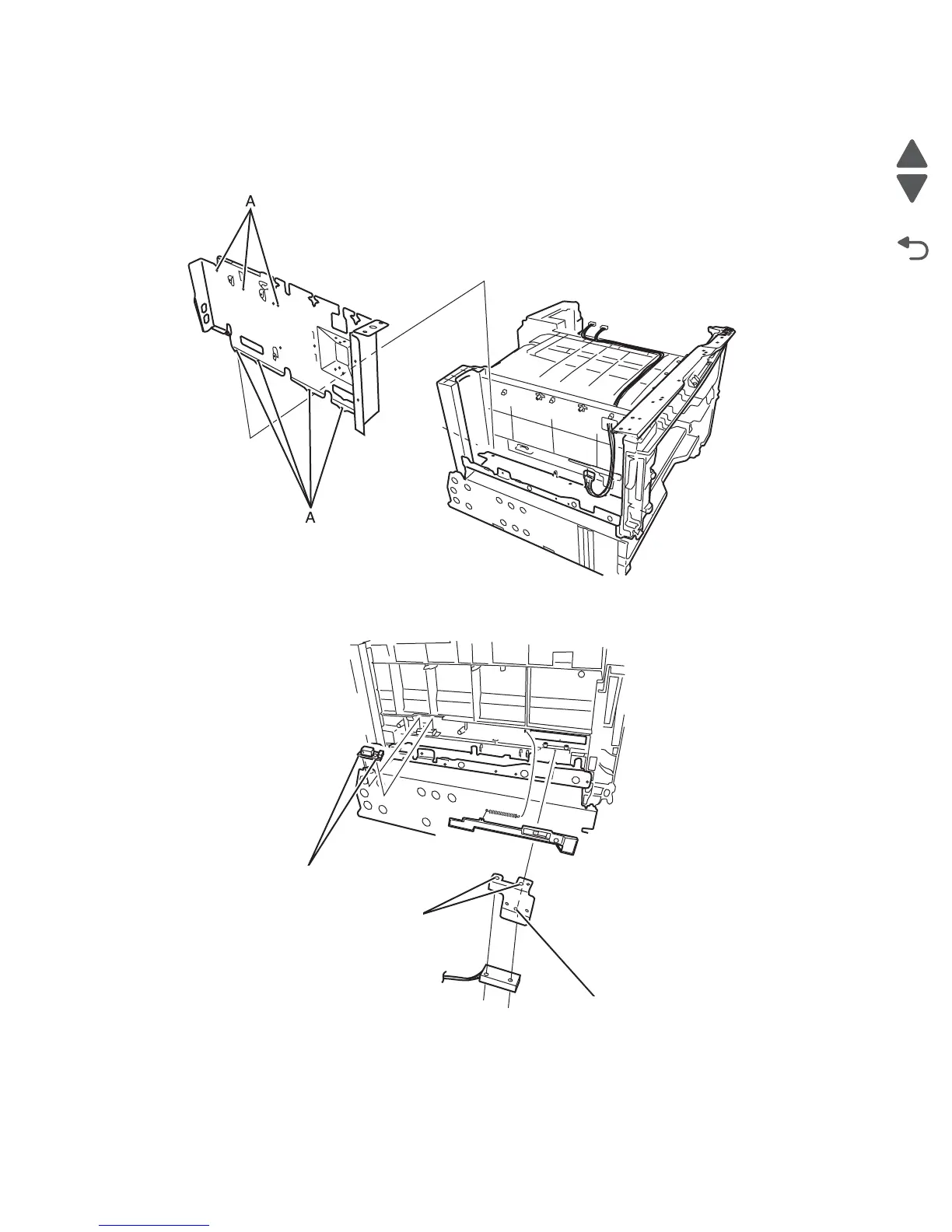

2. Remove the 7 screws (A) securing the power box shield to the printer frame.

3. Disconnect the theta sensor harness from the theta sensor.

4. Remove the one screw (B) securing the theta sensor mounting plate to the printer frame.

5. Remove the two screws (C) securing the theta sensor to the mounting plate.
