Repair information 4-73

5041-030

Go Back

Previous

Next

Papertray lift motor removal

1. Remove the HVU. See “HVPS removal” on page 4-87.

2. Remove the rear fan. See.“Rear fan removal” on page 4-78.

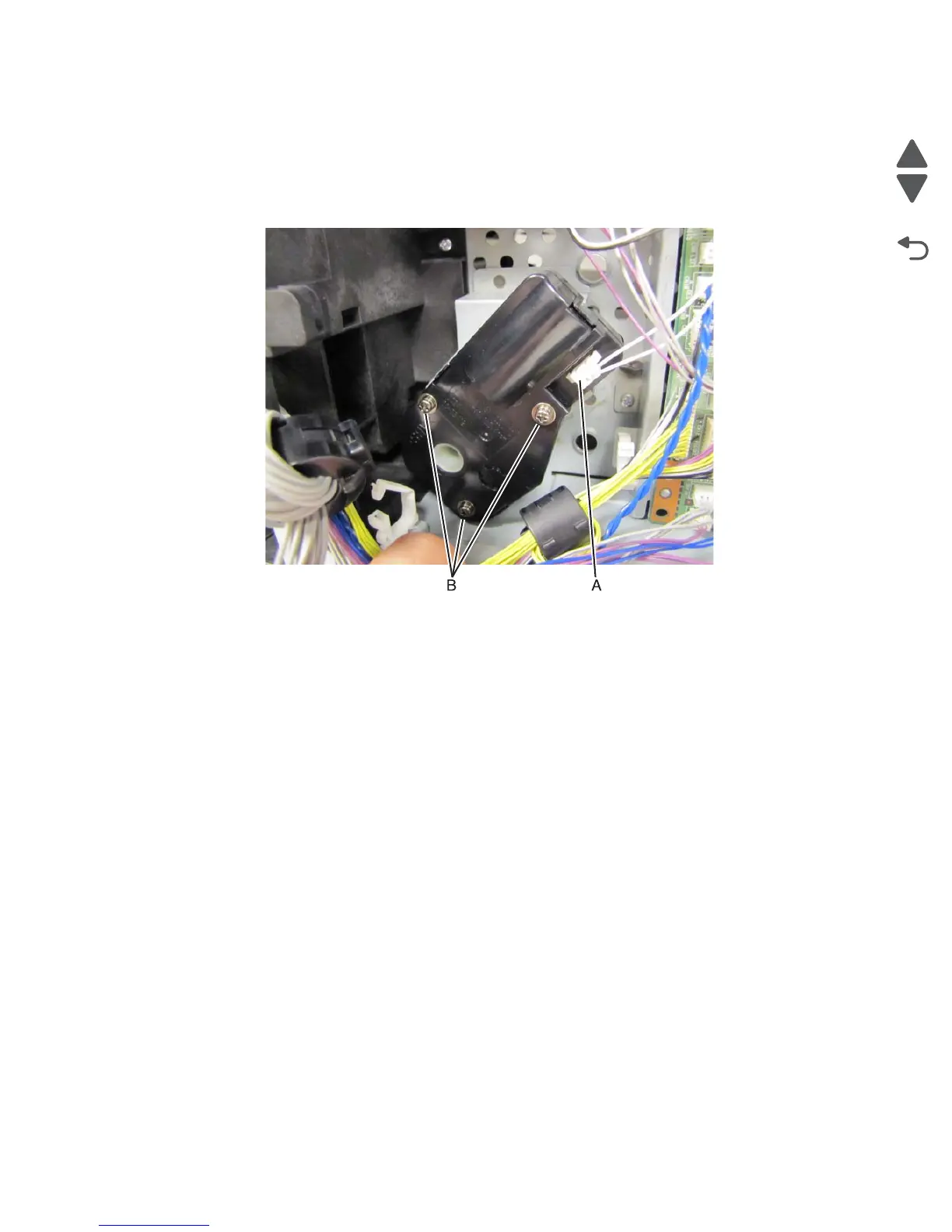

3. Disconnect the cable (A) from the DC Geared motor.

4. Remove the three screws (B) securing the paper tray lift motor to the frame.
