Lexmark C925 - Op Panel Paper Exit Guide Removal

To Next Page

To Previous Page

4-22 Service Manual

5041-030

Go Back

Op panel paper exit guide removal

1. Remove the top cover. See “Top cover removal” on page 4-11.

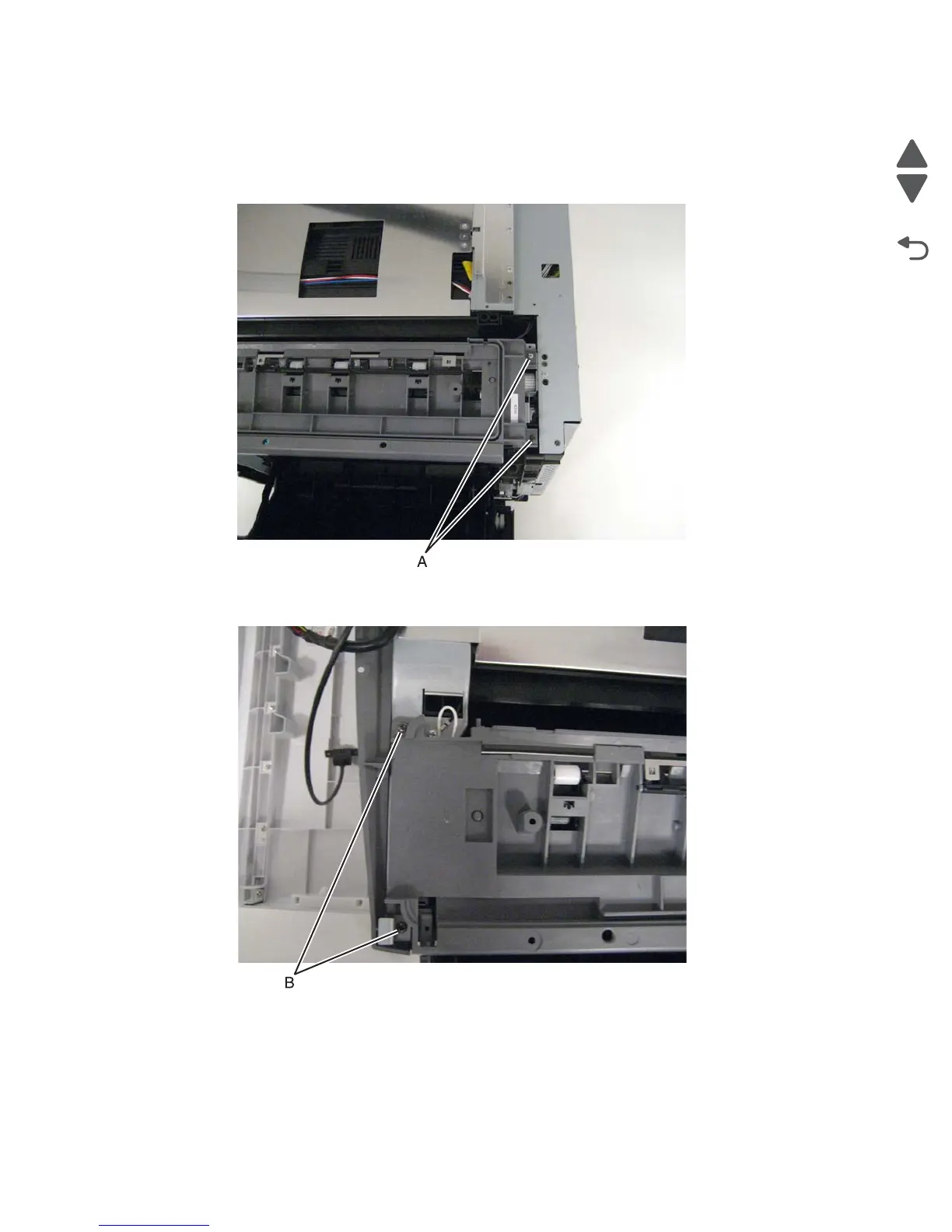

2. Remove the two screws (A) on the rear.

3. Remove the two screws (B) at the front of the printer.
