Repair information 4-95

5041-030

Go Back

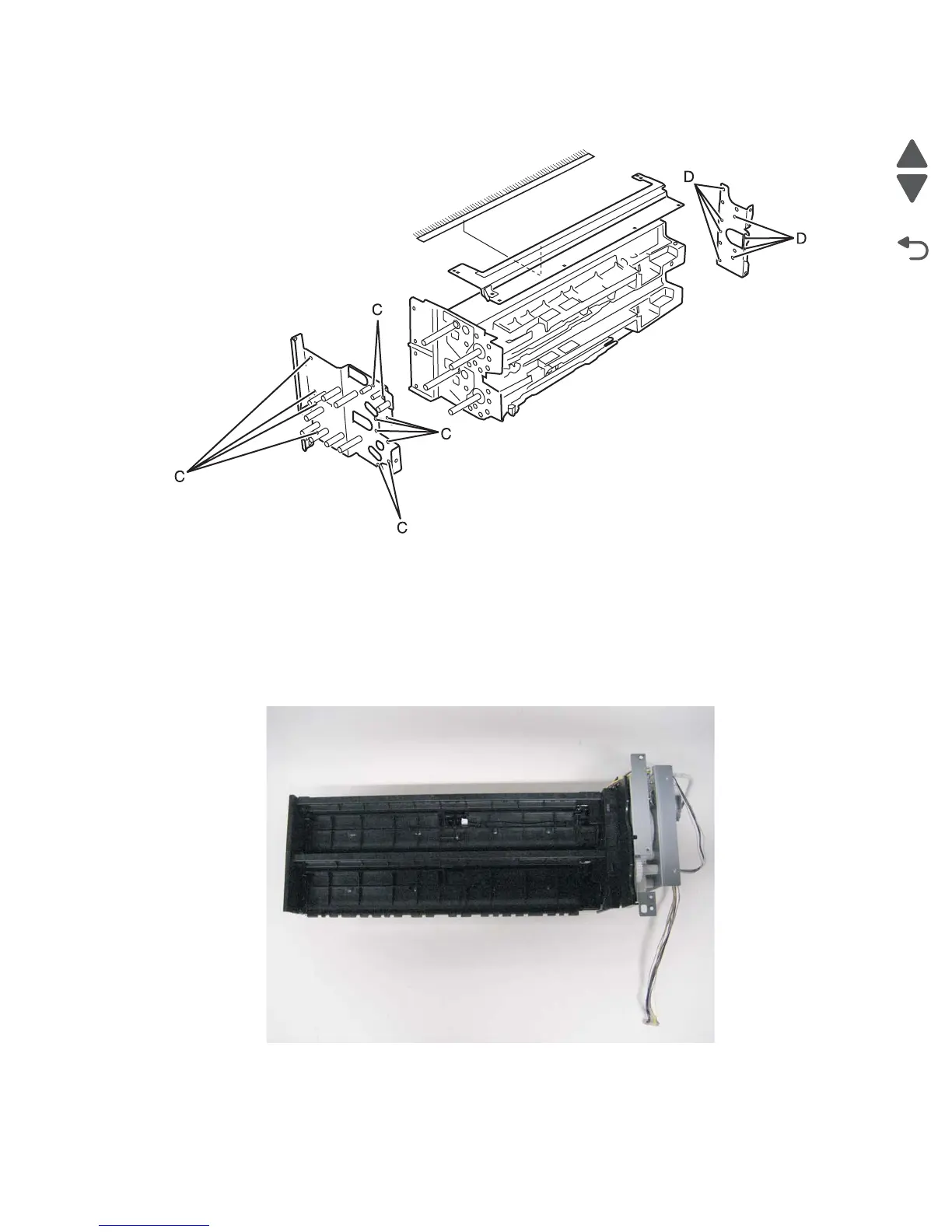

6. Remove the twelve screws (C) securing the paperfeed connect frame to the paperfeed units.

7. Remove the eight screws (D) securing the paperfeed connect frame to the paperfeed units.

Main tray paper guide removal

Note: This is not a FRU.

1. Remove the paper feed unit. See “Paper feed unit removal” on page 4-58.

2. Place the paper feed unit on its side with the paper guides facing up.
