Top cover removal

1. Remove the rear cover. See “Rear cover removal” on page 4-5.

2. Remove the operator panel assembly. See “Operator panel removal” on page 4-8.

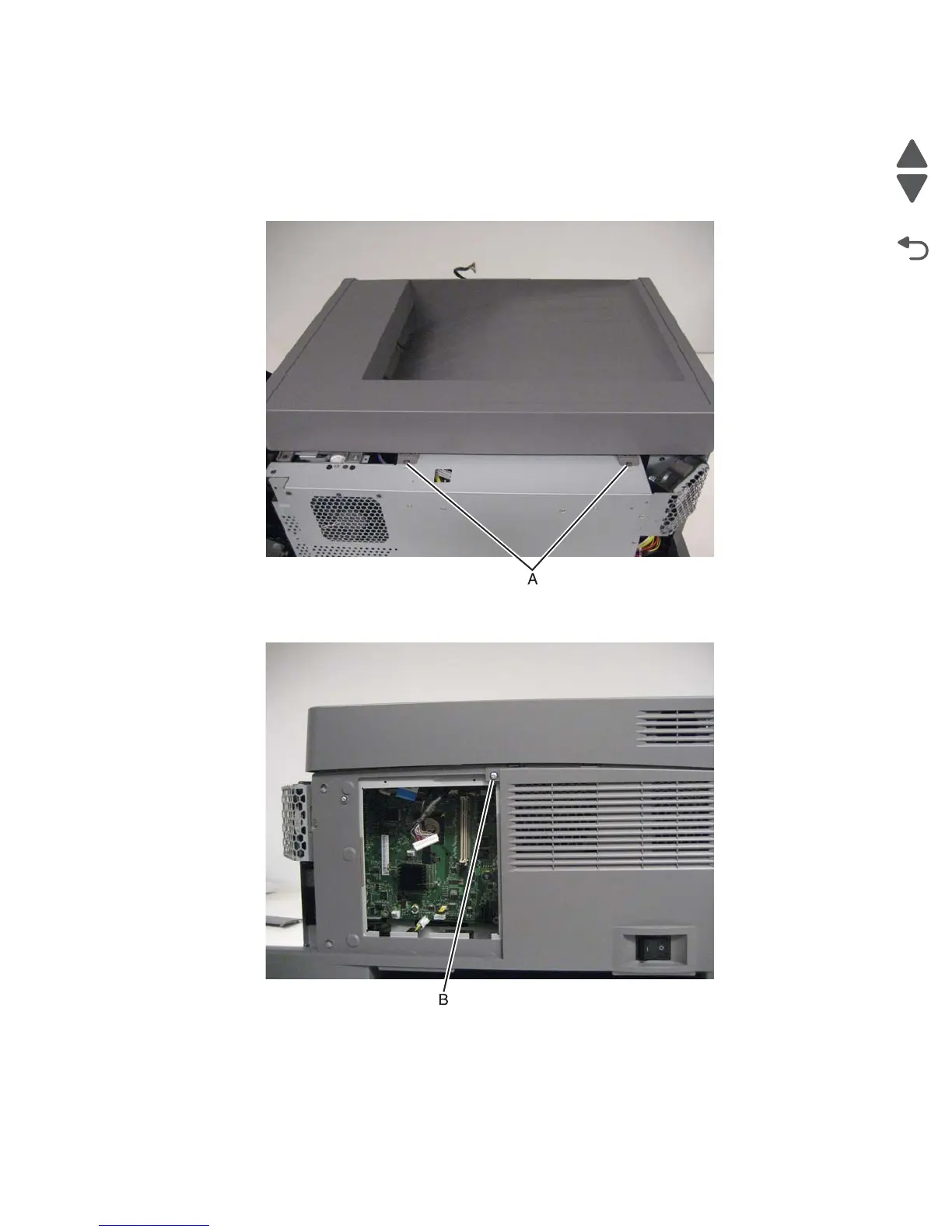

3. Remove the two screws (A) securing the top cover to the rear EMI shield.

4. Remove the screw (B) securing the top cover to the left EMI shield.
