Static discharge brush removal
1. Remove the paperfeed unit. See “Paper feed unit removal” on page 4-58.

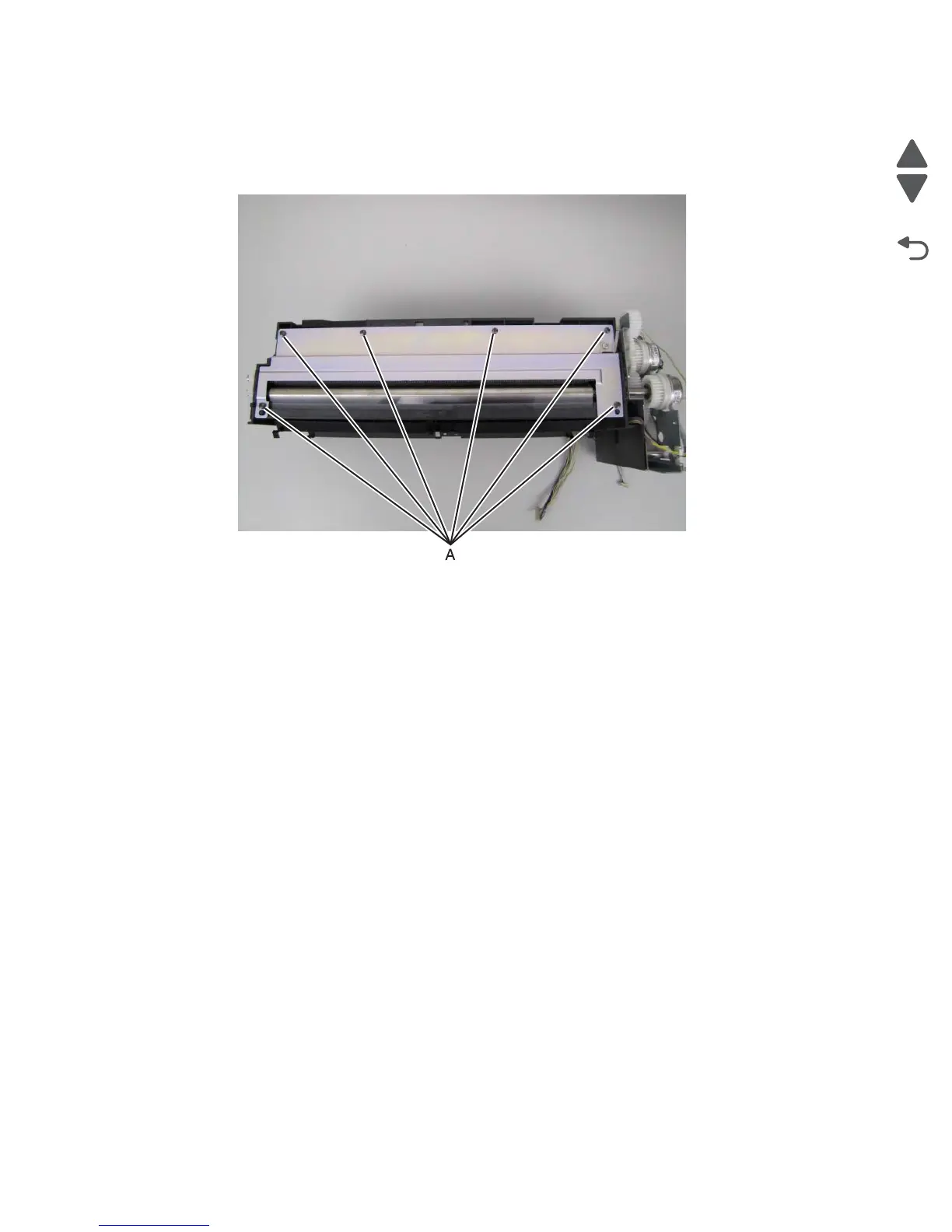

2. Remove the six screws (A) that secure the discharge brush plate to the paperfeed unit.
Torque limiter removal
1. Remove the separator roll. See “Separator roll removal” on page 4-105.
2. Remove the torque limiter.
Upper and lower registration springs removal
1. Remove the paperfeed unit. See “Paper feed unit removal” on page 4-58.
2. Remove the clutches on the paperfeed unit. See “Paperfeed unit clutch removal” on page 4-100.
3. Separate the two paperfeed units. See “Separating the MPF tray and main tray paperfeed units” on
page 4-94.
