Lexmark C925 - Top EMI Sheild Removal

To Next Page

To Previous Page

4-30 Service Manual

5041-030

Go Back

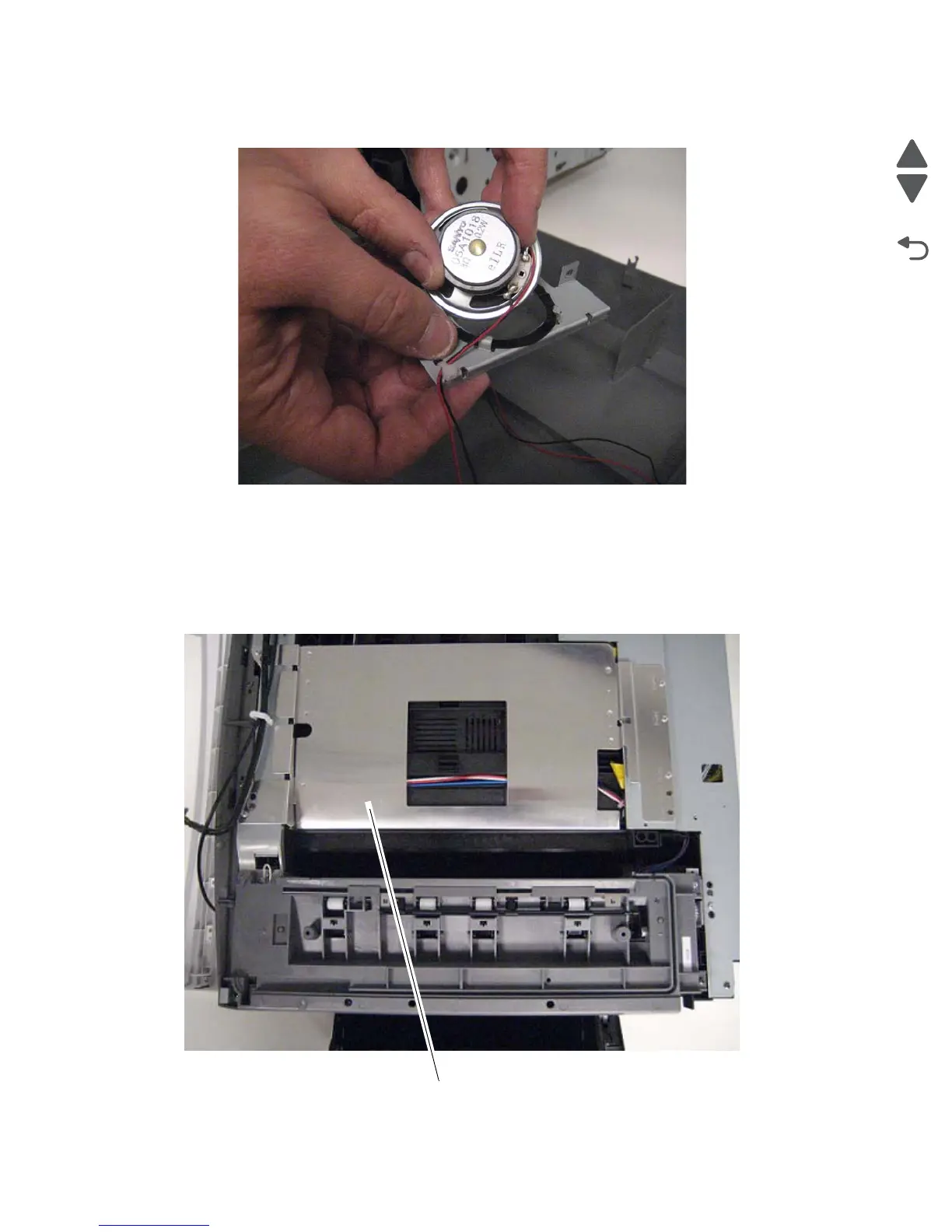

5. Remove the speaker from the frame.

Top EMI sheild removal

1. Remove the top cover. See “Top cover removal” on page 4-11.

2. Remove the seven screws securing the sheild (A) to the top of the printer. There are five screws on the

rear and two screws on the front.
