Photoconductor lock removal

1. Remove the standard paper tray.

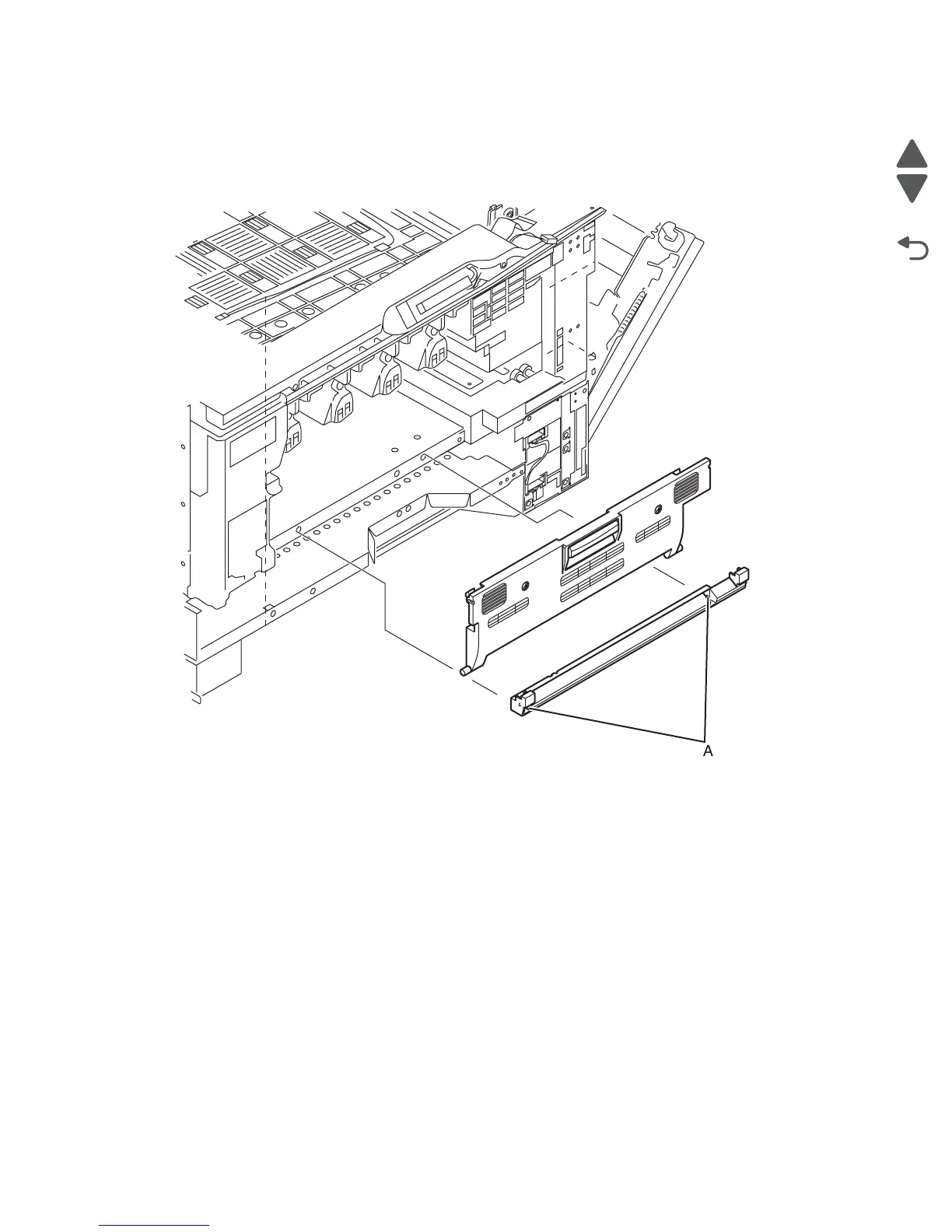

2. Remove the two screws (A) that secure the front metal cover to the printer frame.

3. Remove the photoconductor lock.
