Left side removals

ISP option board removal

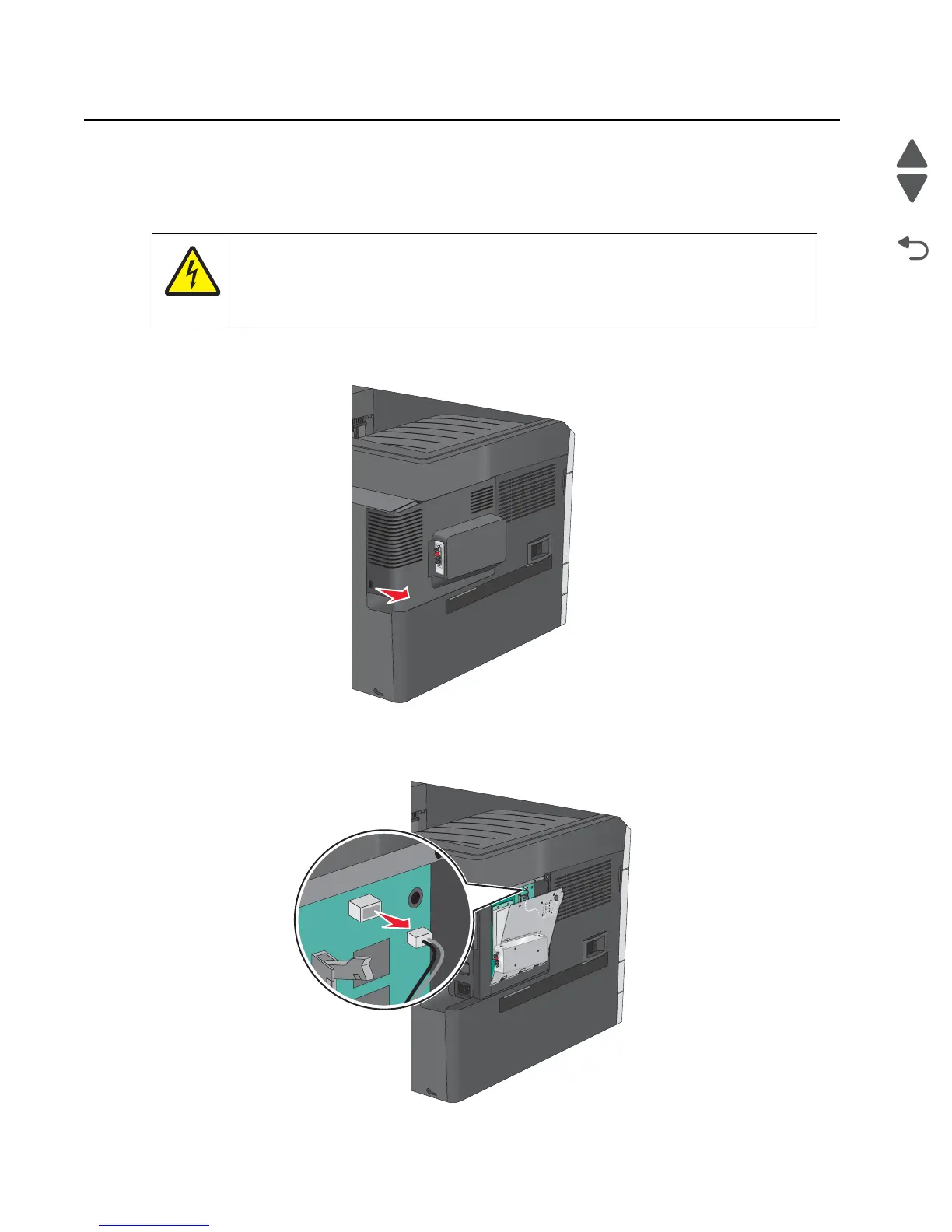

1. Remove the ISP access cover.

2. Turn the screws on the RIP cage cover counterclockwise to remove them, and then pull the RIP w/ ISP

bracket cage cover down.

3. Unplug the RIP cage fan from the RIP board.

CAUTION

Remove the power cord from the electrical outlet before you connect or disconnect any cable

or electronic board or assembly for personal safety and to prevent damage to the printer.

Disconnect any connections between the printer and PCs/peripherals.
