Touchscreen removal
1. Remove the operator panel assembly. See “Operator panel removal” on page 4-8.
2. Remove the UICC from the operator panel assembly. See “UICC card removal” on page 4-9.

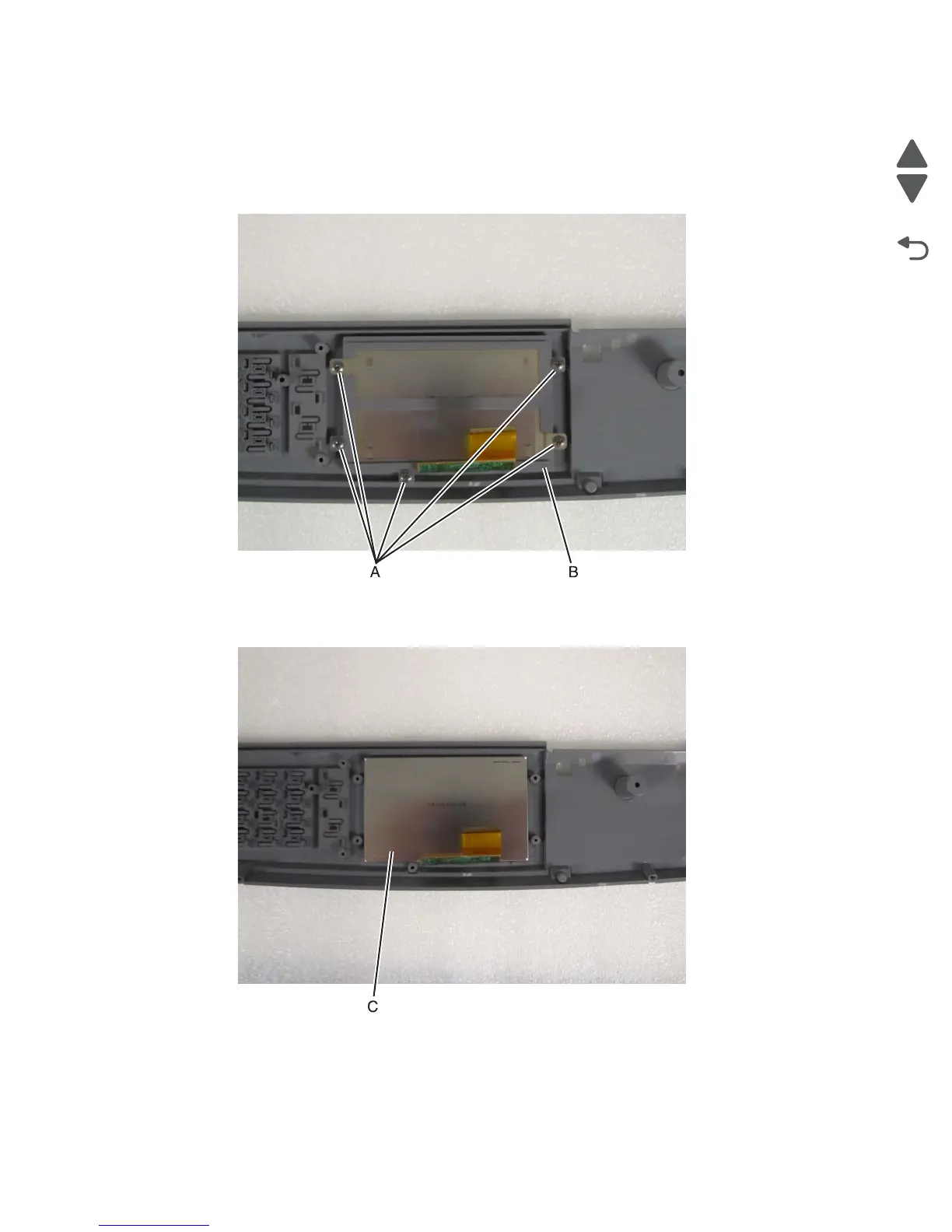

3. Remove the five screws (A) securing the TSP holder and TSP ground to the operator panel assembly.
4. Remove the TSP ground and TSP holder (B).
5. Remove the touchscreen panel (C).
