Diagnostic information 2-15

5041-030

Go Back

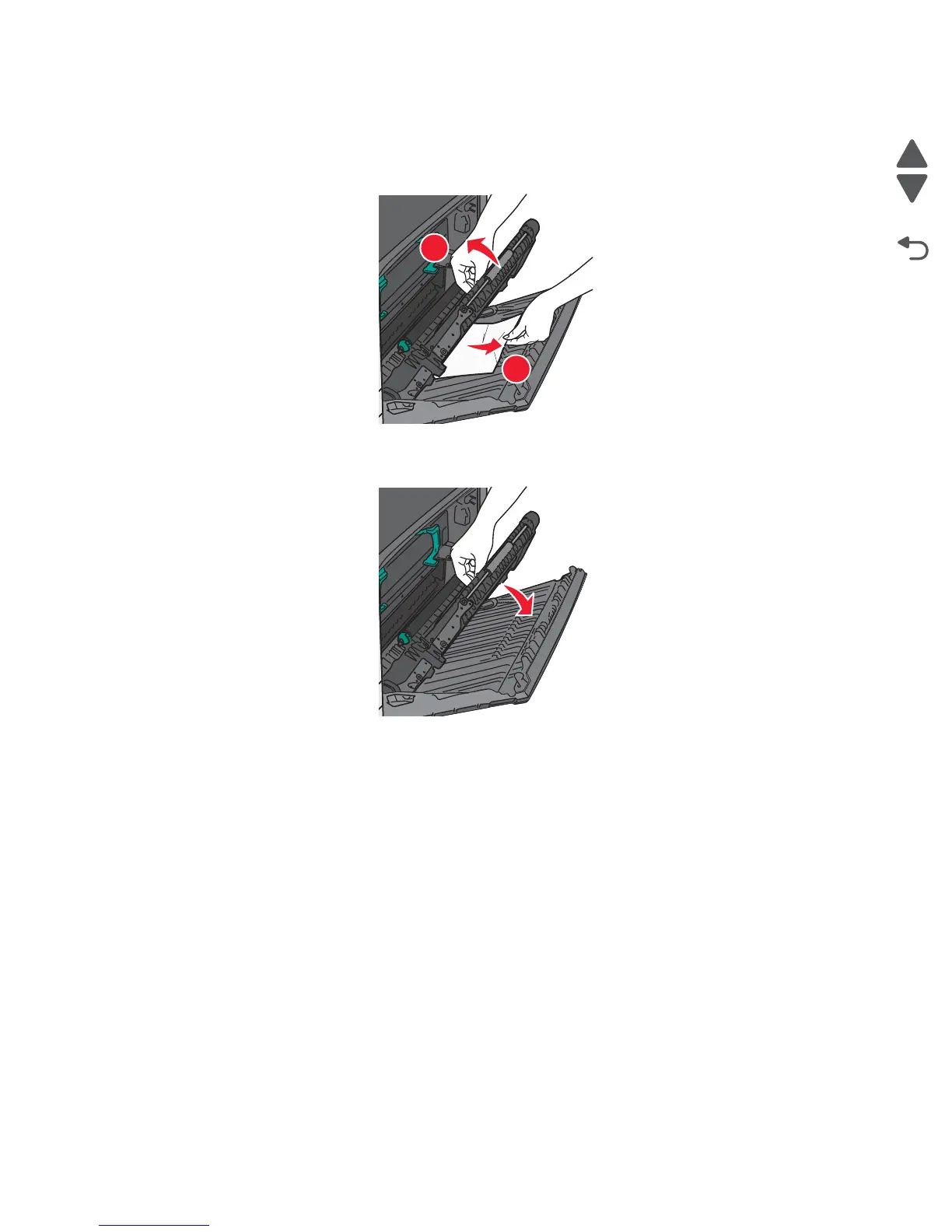

230 paper jam

Open the right cover.

2. Lift the duplexing unit mechanism away from the cover.

3. Remove any jammed paper.

4. Lower the mechanism.

5. Close the right cover.

6. Press Continue, jam cleared.
