Lexmark C925 - Cover Removals; Rear Cover Removal

To Next Page

To Previous Page

Repair information 4-5

5041-030

Go Back

Cover removals

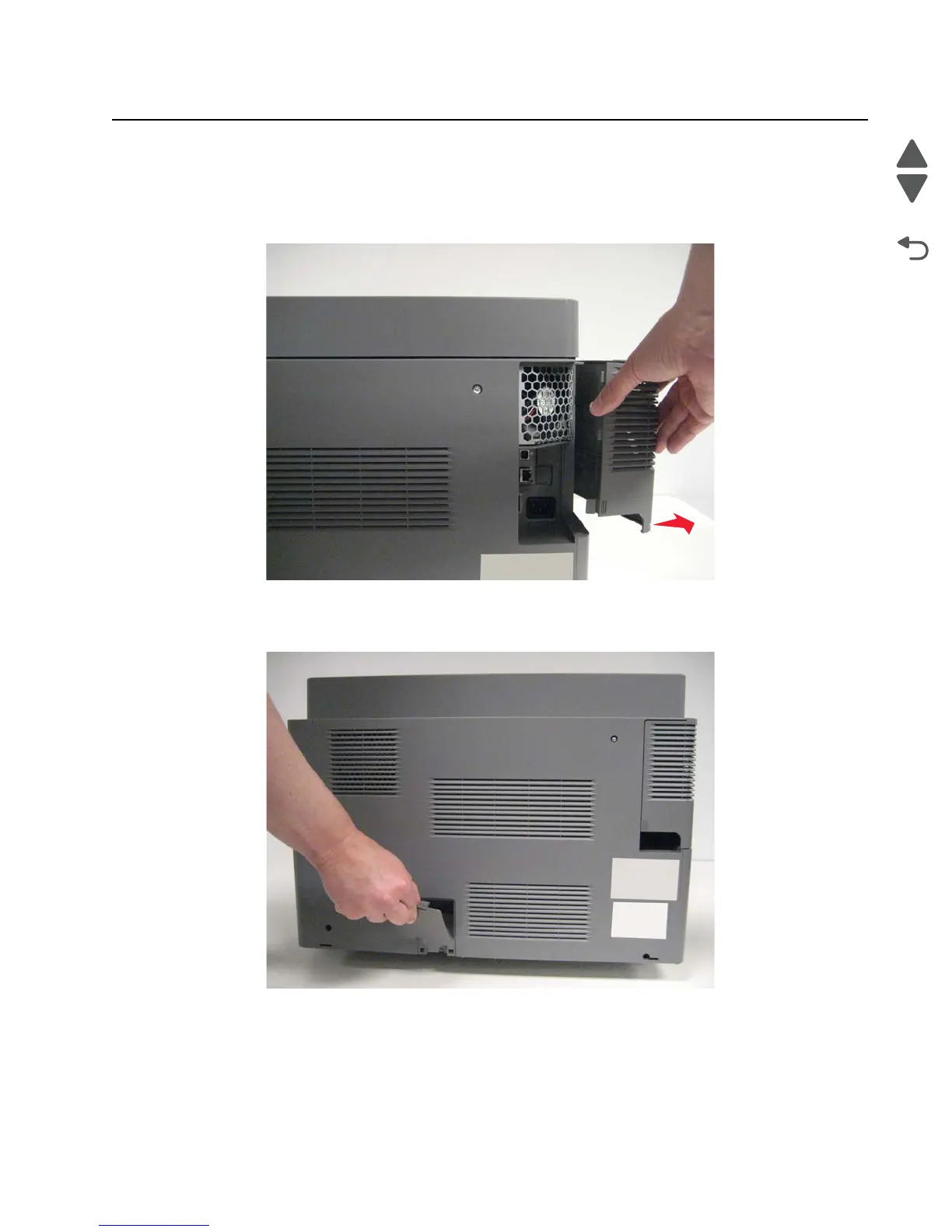

Rear cover removal

1. Remove the RIP card cover.

2. Remove the option connector cover.
