Lexmark C925 - Handle Cover Removal

To Next Page

To Previous Page

4-52 Service Manual

5041-030

Go Back

Handle cover removal

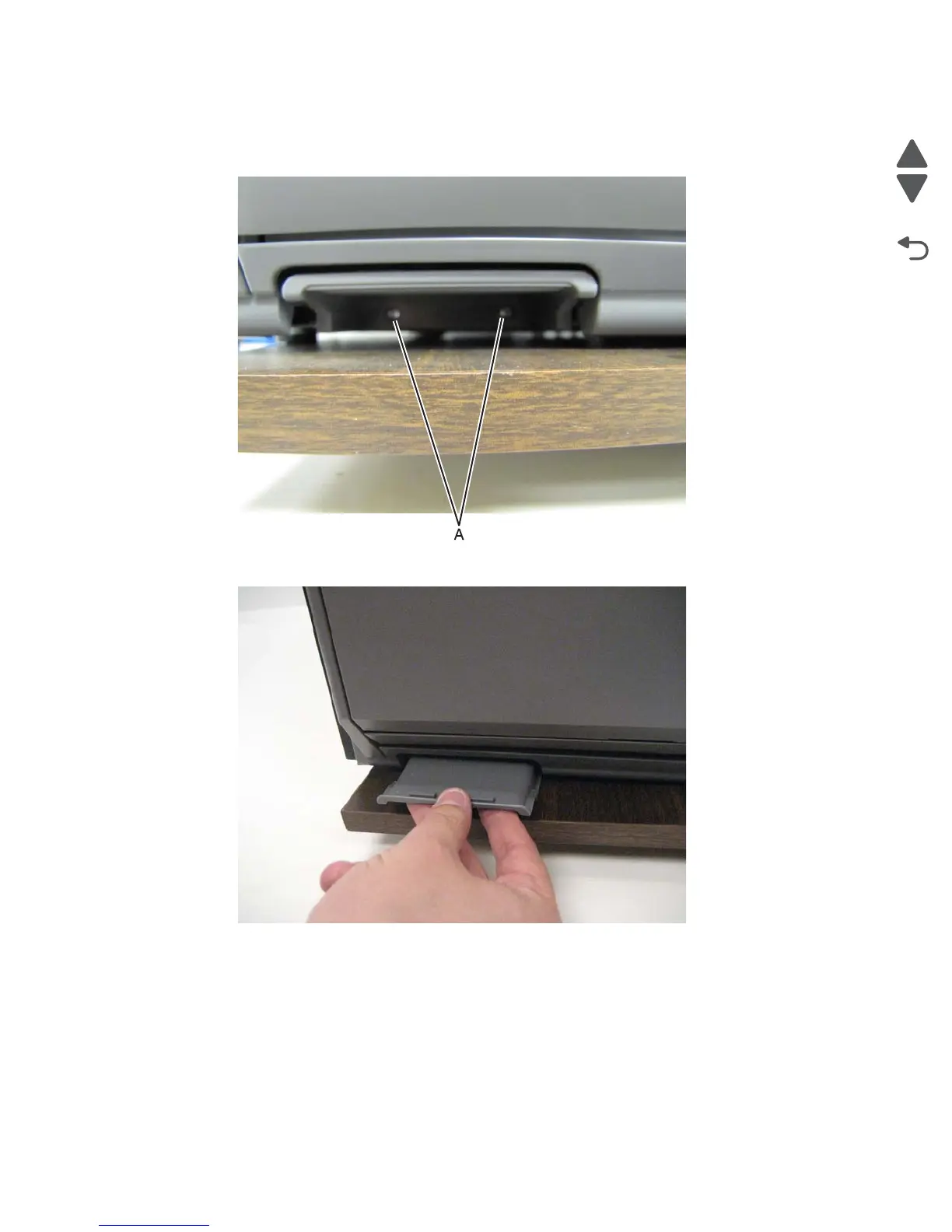

1. Remove the two screws (A) securing the handle covers to the printer frame.

2. Remove the handle cover.
