Lexmark C925 - Transfer Belt Motor Removal

To Next Page

To Previous Page

Repair information 4-77

5041-030

Go Back

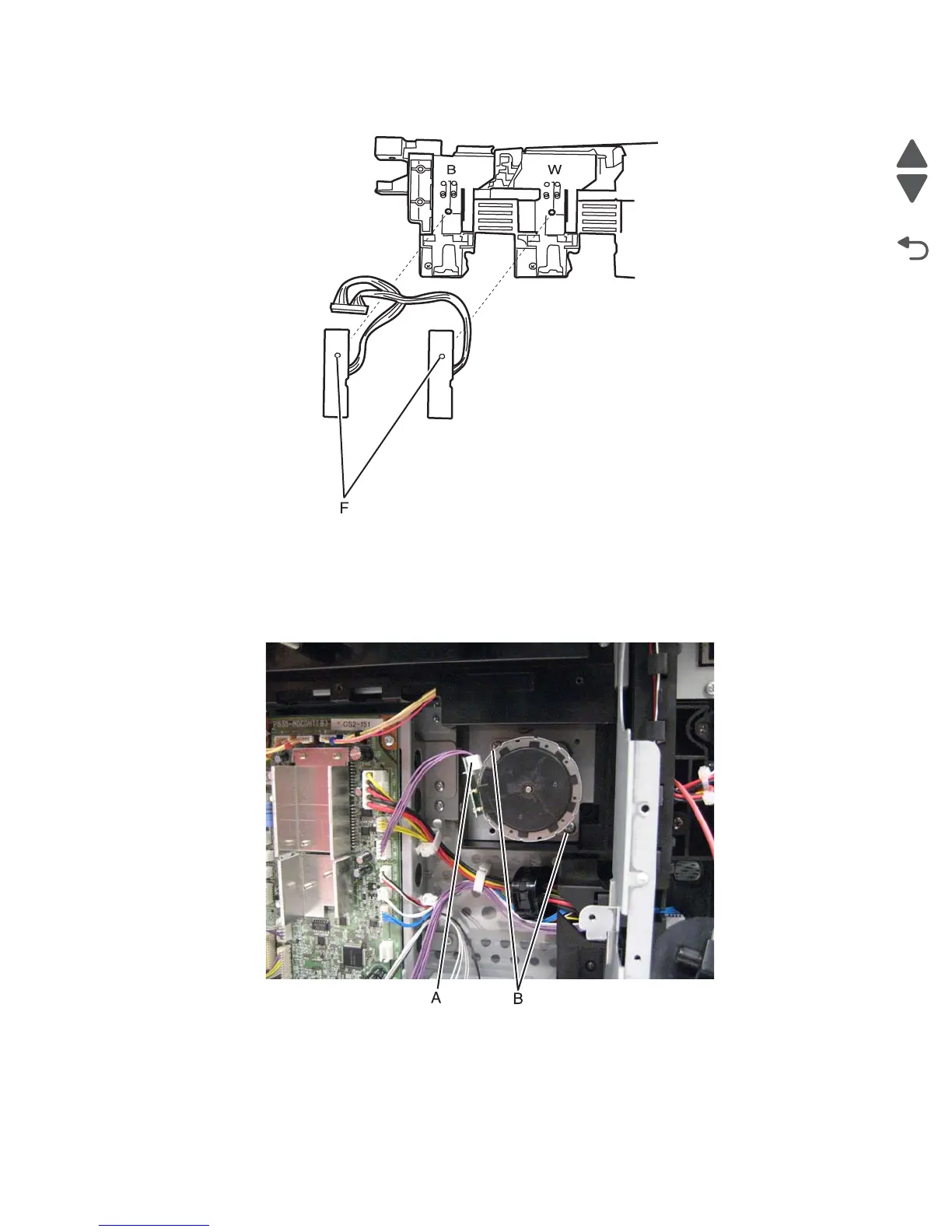

9. Remove the screws (F) securing the toner sensors to the top frame.

Transfer belt motor removal

1. Remove the HVPS.

2. Disconnect the motor harness (A) from the transfer belt.

3. Remove the two screws (B) securing the motor to the frame.
