Lexmark C925 - Interior

To Next Page

To Previous Page

Locations 5-3

5041-030

Go Back

Interior

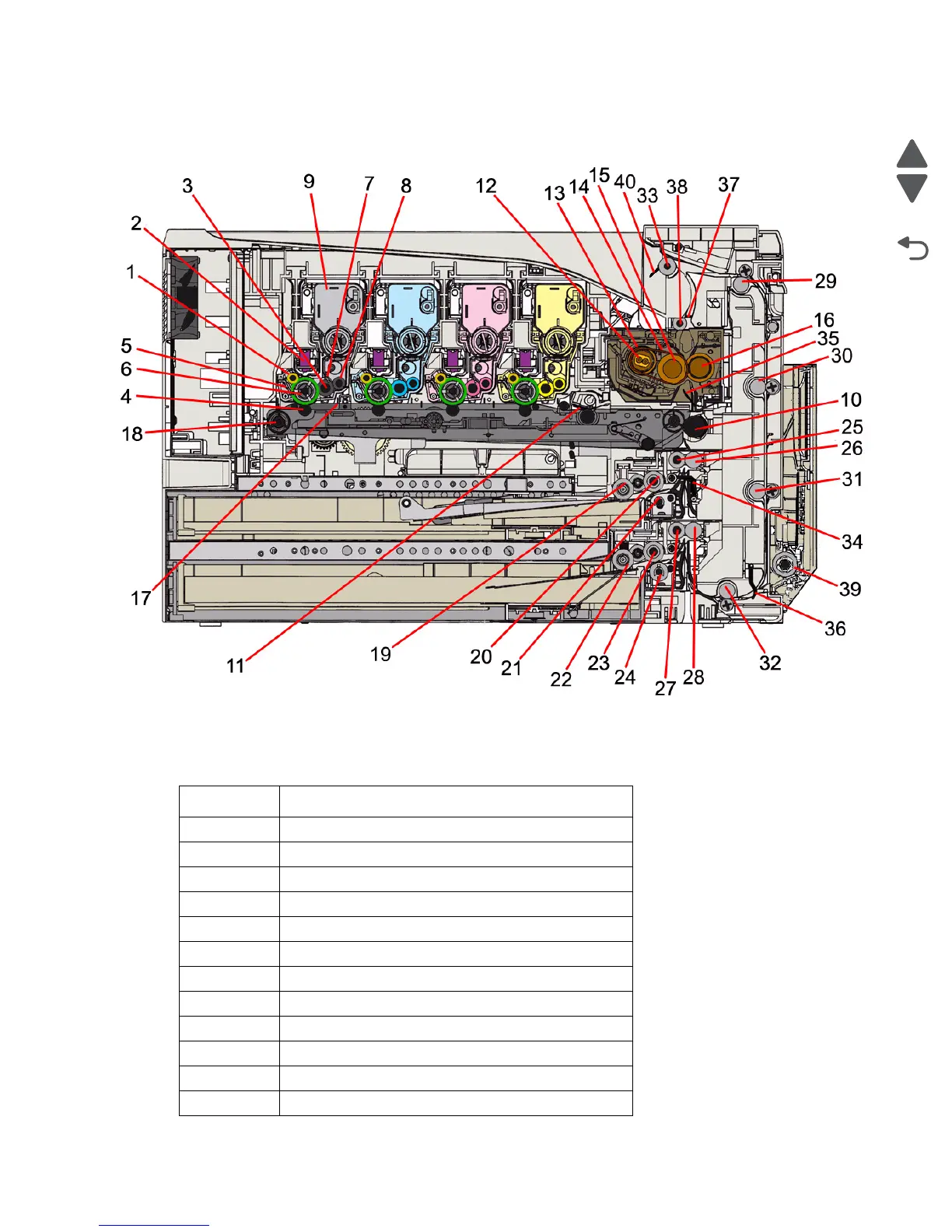

Callout no. Part name

1 Charge roll

2 LED head

3 Developer roll

4 Primary transfer roll

5 Drum cleaning blade

6 Photoconductor

7 Doctor blade

8 Supply roll

9 Toner cartridge

10 Secondary transfer roll

11 Transfer belt cleaning blade

12 Fuser heater
