Lexmark C925 - Operator Panel Bezel Removal

To Next Page

To Previous Page

Repair information 4-7

5041-030

Go Back

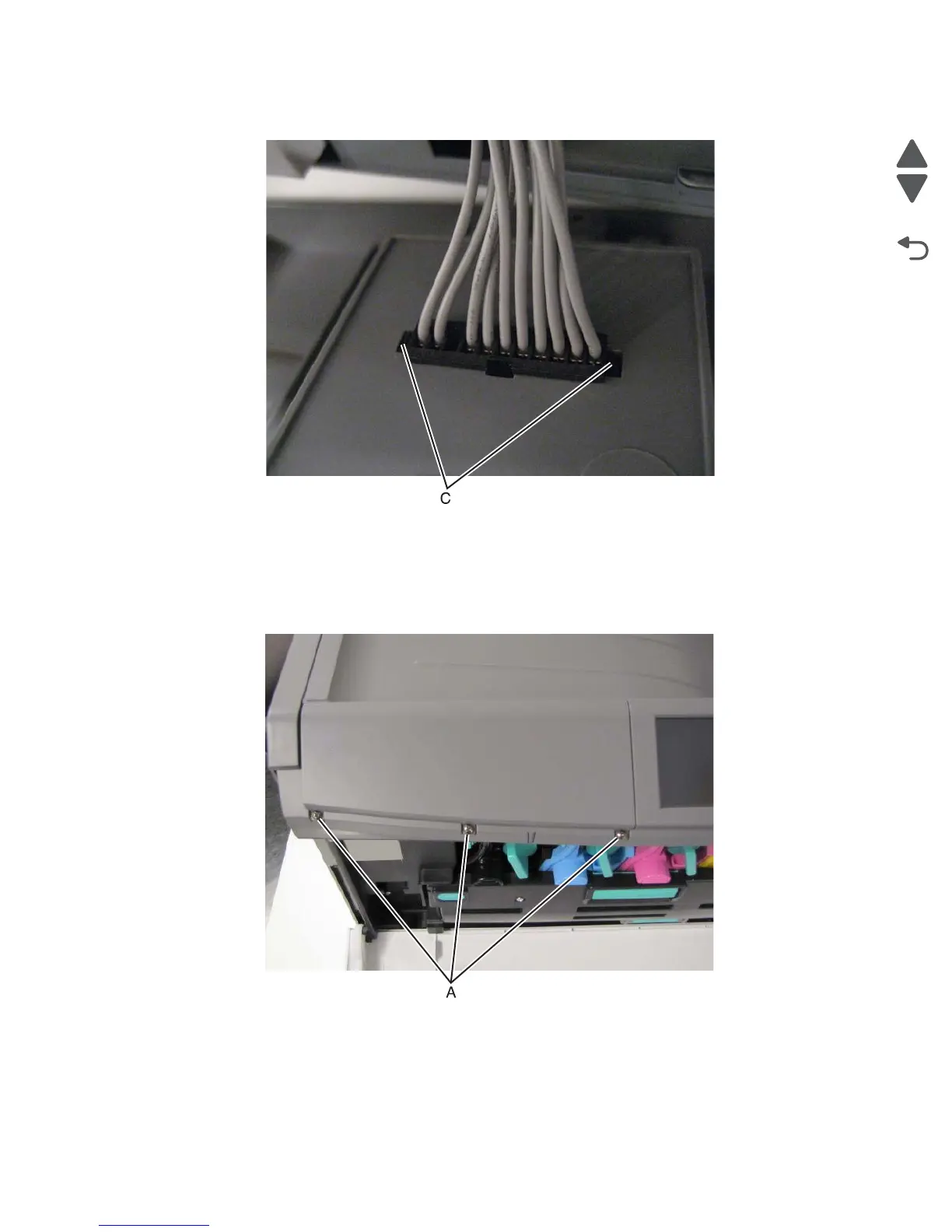

6. Using a flatblade screwdriver, release the tabs (C) fastening the option cable to the rear cover.

Operator panel bezel removal

1. Open the front door.

2. Remove the three screws (A) securing the operator panel bezel to the operator panel assembly.

3. Lift the bezel up, and remove it from the operator panel assembly.
