231-39 paper jam

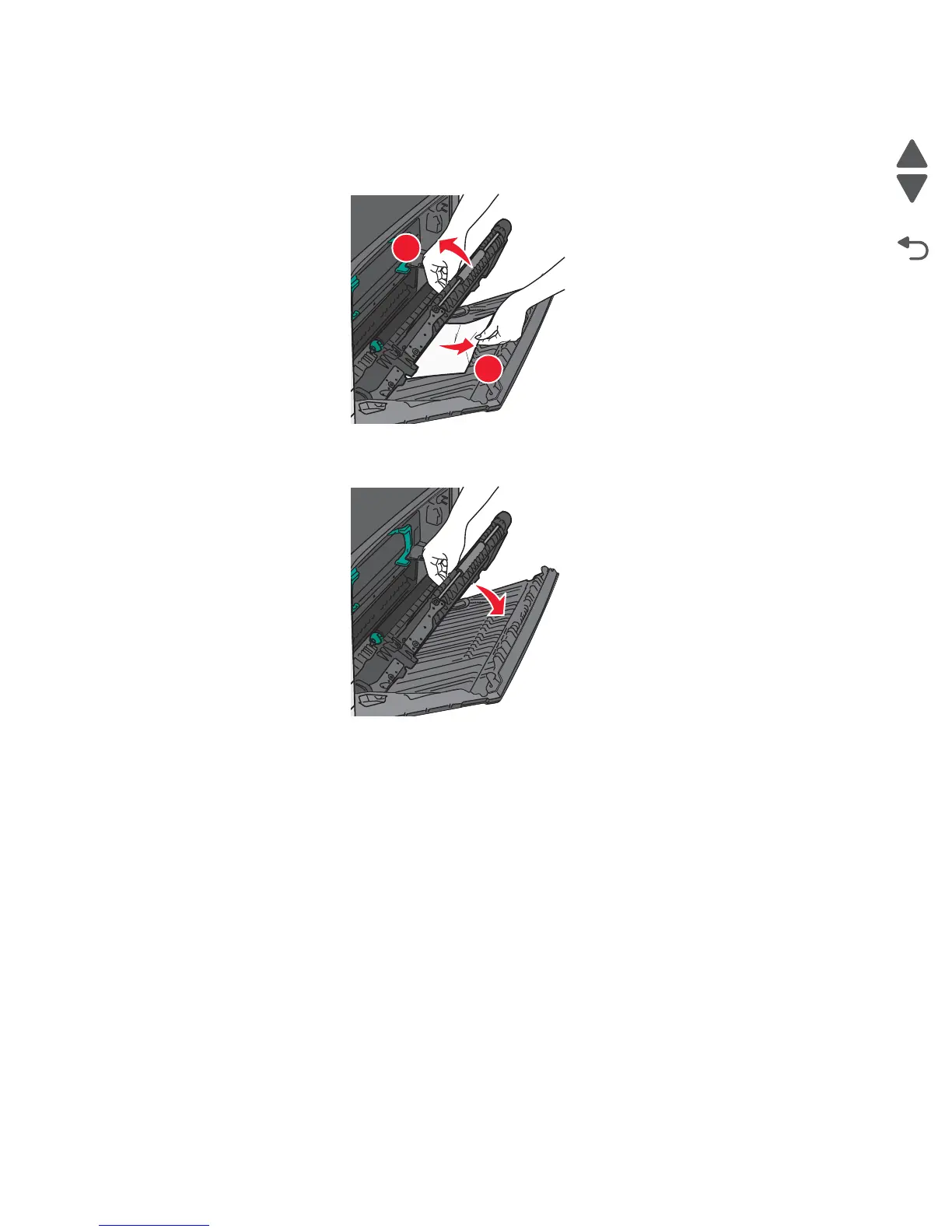

Open the right cover.

2. Lift the duplexing unit mechanism away from the cover.

3. Remove any jammed paper.

4. Lower the mechanism.

5. Close the right cover.

6. Press Continue, jam cleared.
