Lexmark C925 - UICC Card Removal

To Next Page

To Previous Page

Repair information 4-9

5041-030

Go Back

UICC card removal

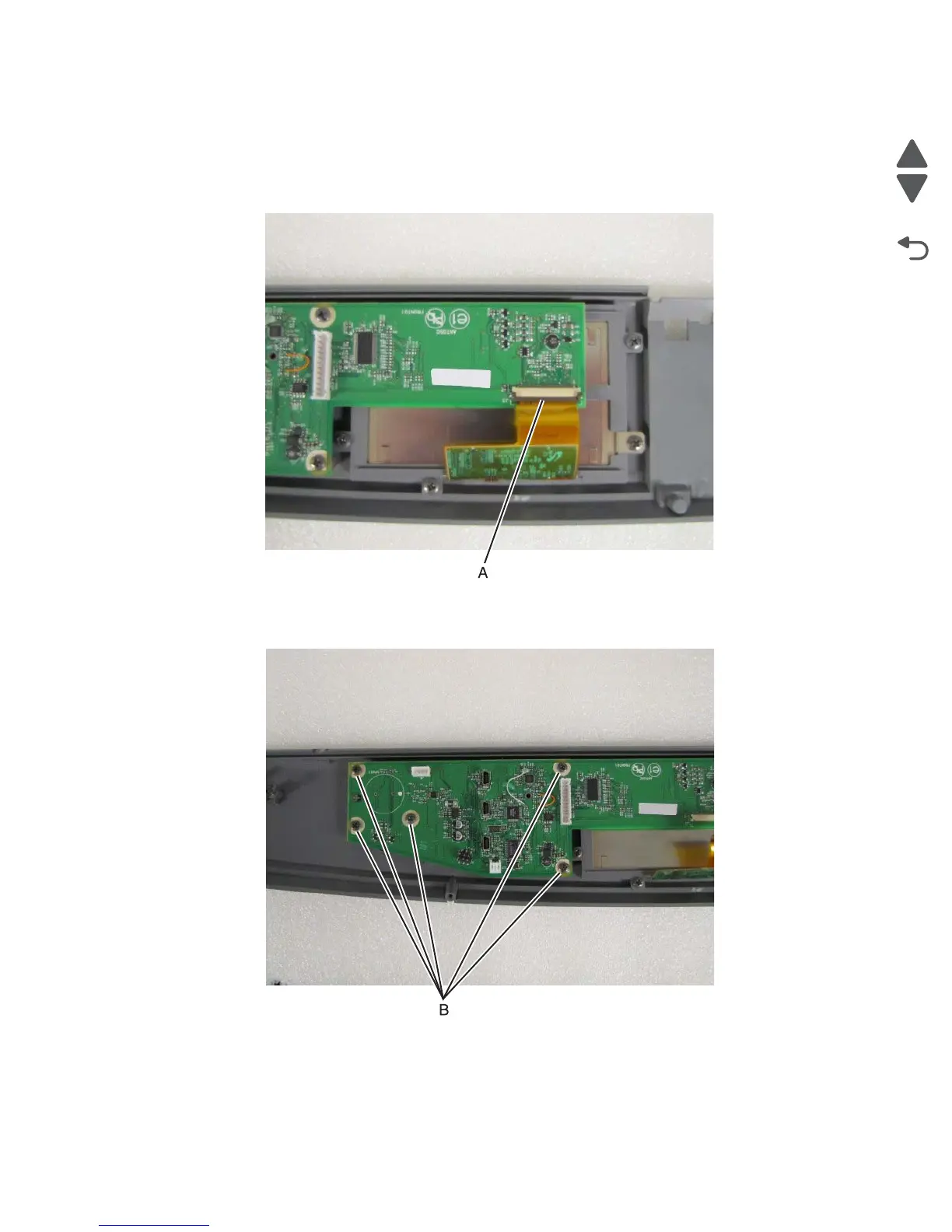

1. Remove the operator panel assembly. See “Operator panel removal” on page 4-8.

2. Place the operator panel assembly face down on a non-marring surface.

3. Carefully open the ZIF connector (A) and disconnect the display ribbon cable.

4. Remove the five screws (B) that secure the UICC card to the operator panel assembly.
