Left EMI shield removal (not a FRU)

1. Remove the top cover.

2. Remove the left cover.

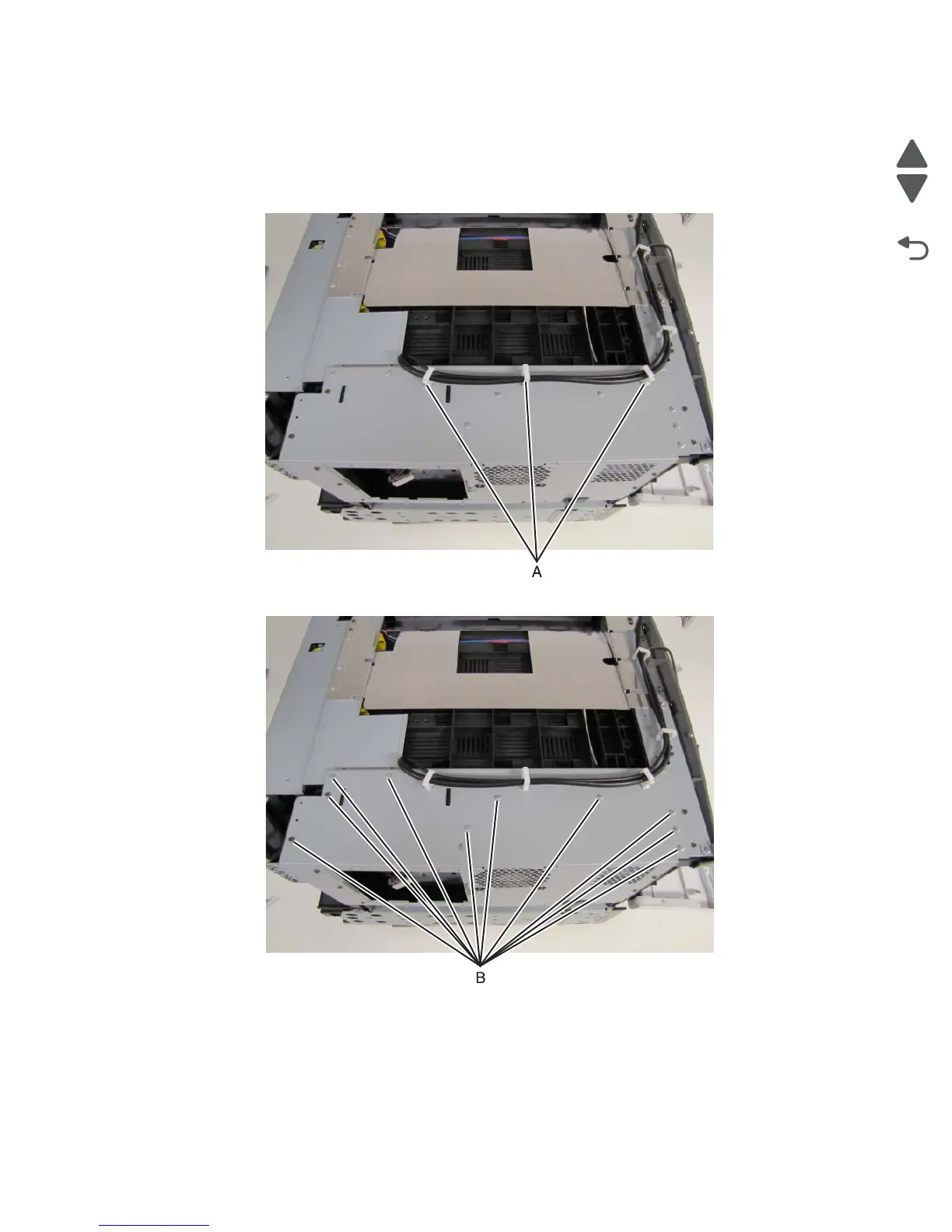

3. Remove the RIP -USB, and RIP -UICC cables from the cable guides (A) on top of the shield.

4. Remove the ten screws (B) on the top side of the shield.
