Top removals

Output bin full sensor actuator removal

1. Remove the top cover. See “Top cover removal” on page 4-11.

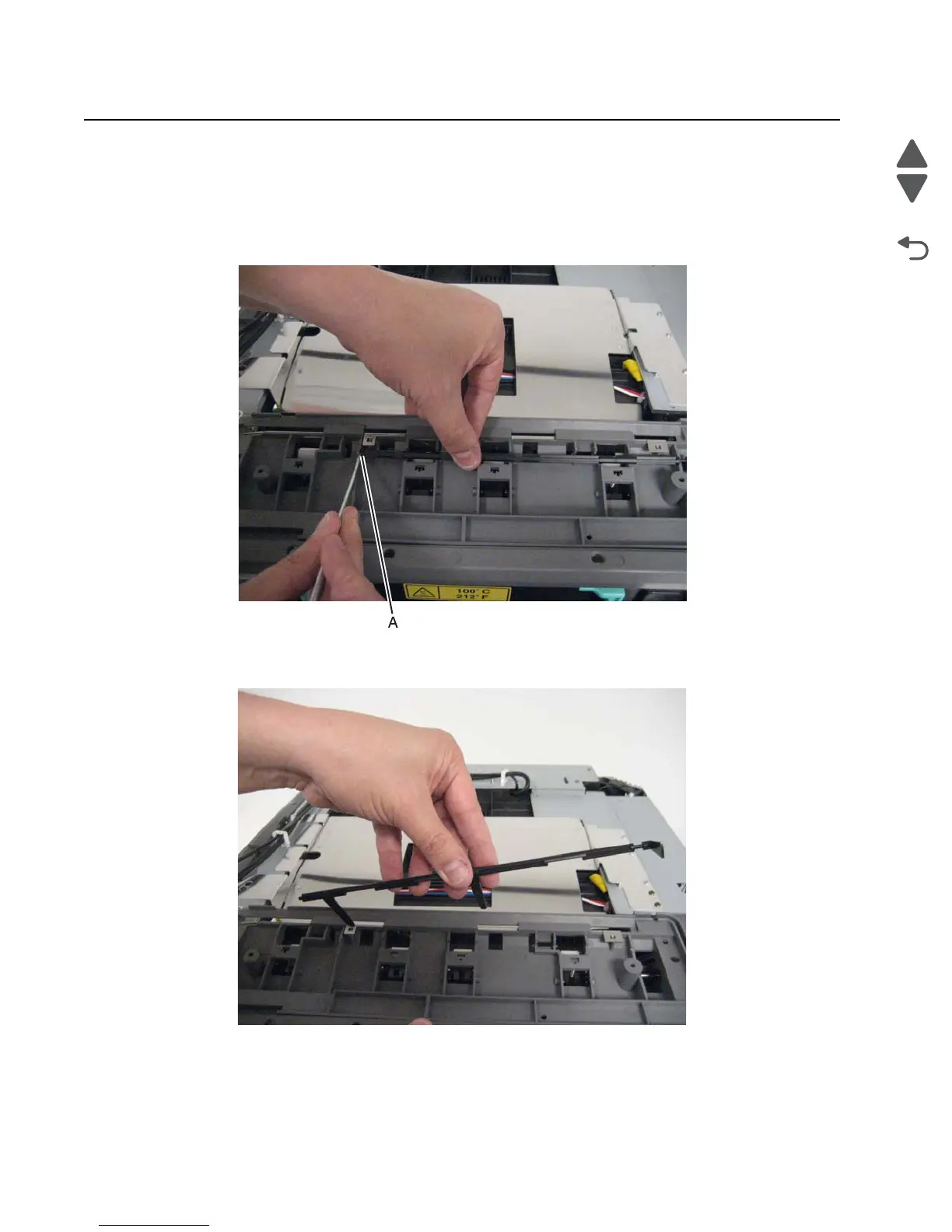

2. Use a flatbed screwdriver to gently pry the tab (A) holding the actuator in place.

3. Carefully lift the actuator up. Be careful to avoid dislodging the exit sensor.
