Lexmark C925 - MPF Pad Removal

To Next Page

To Previous Page

Repair information 4-109

5041-030

Go Back

MPF pad removal

1. Remove MPF tray. See “MPF tray assembly removal” on page 4-92.

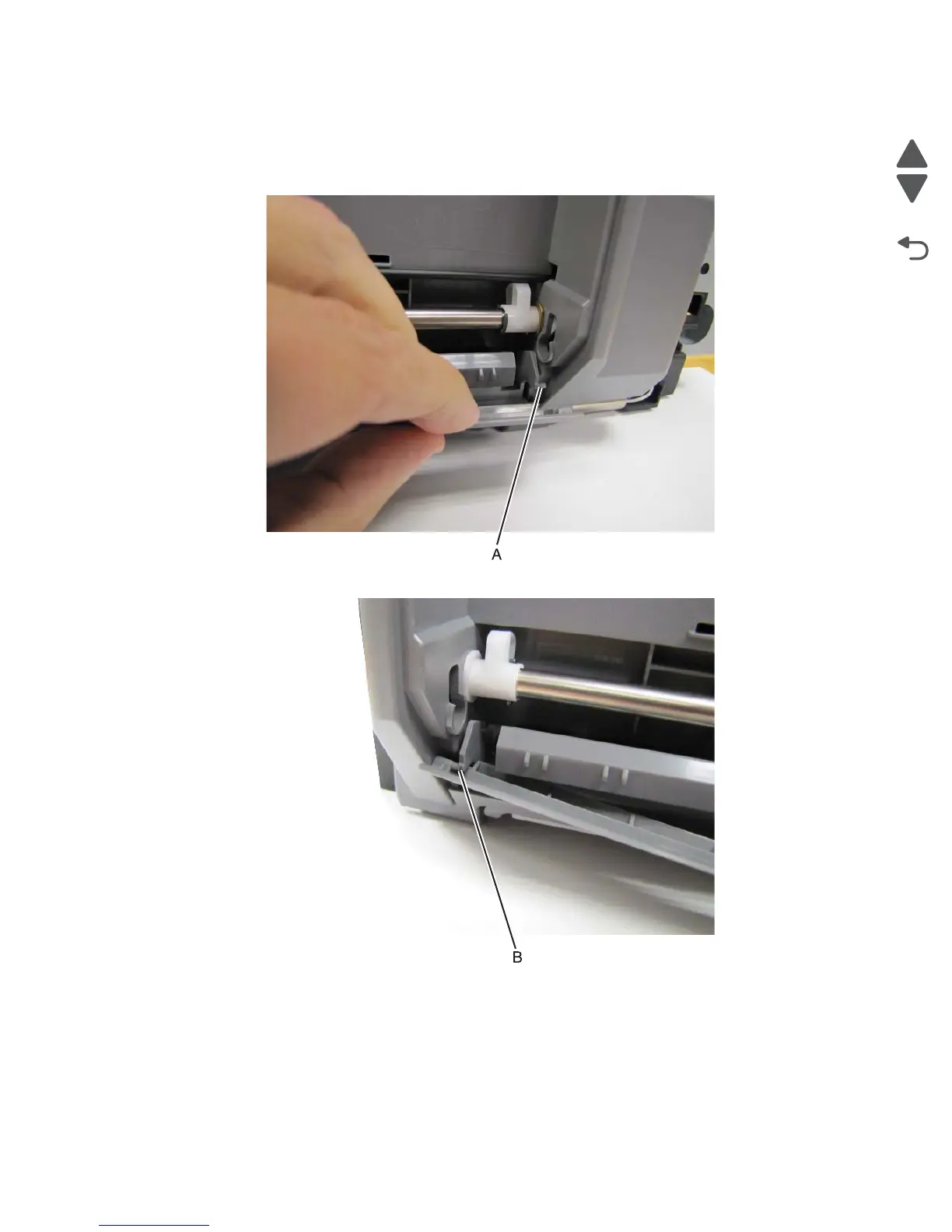

2. Gently pull the right side of the pad holder cover and disconnect it from the mount (A).

3. Gently pull the left side of the pad holder cover and disconnect it from the mount (B).
