Lexmark C925 - Left Cover Removal

To Next Page

To Previous Page

Repair information 4-13

5041-030

Go Back

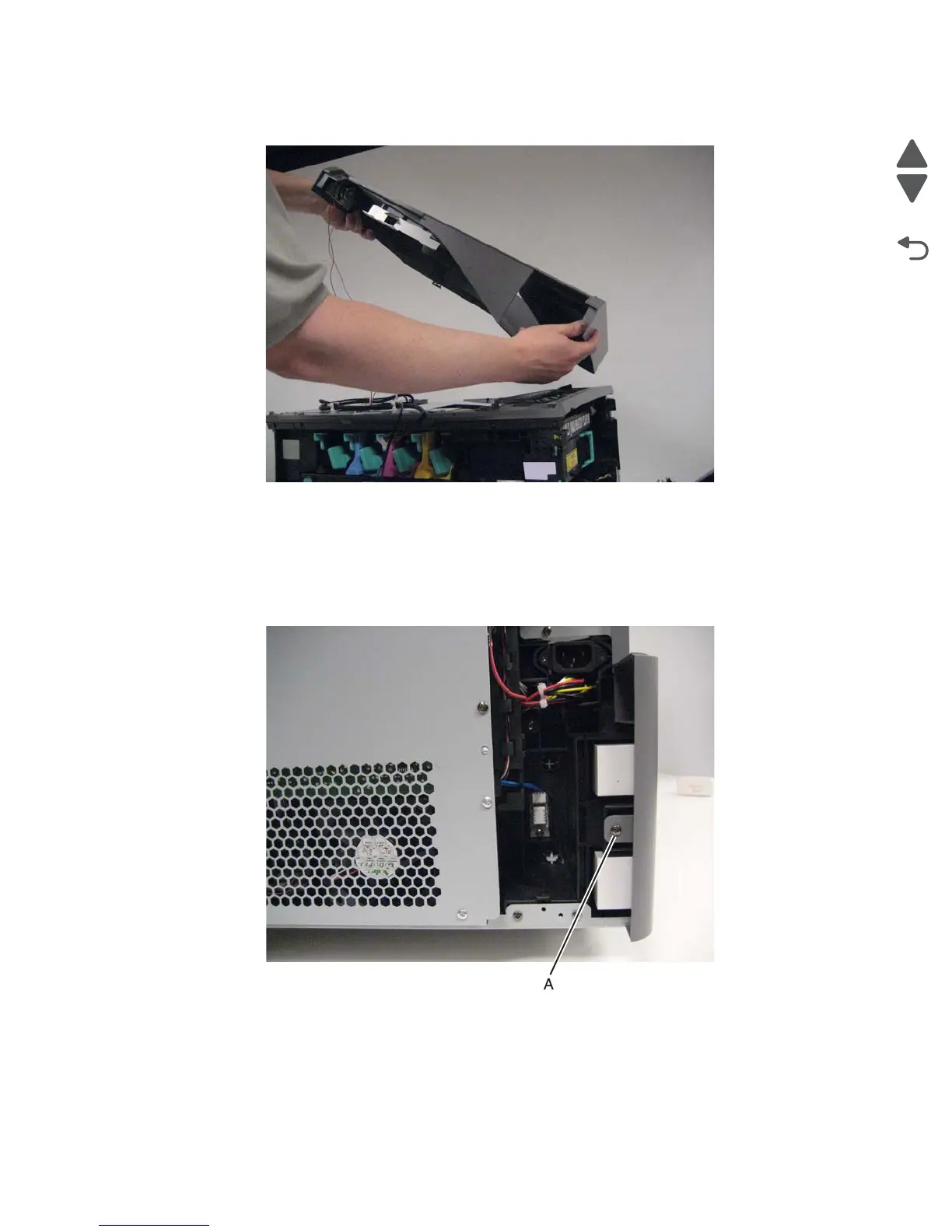

7. Lift the top cover up and away.

Left cover removal

1. Remove the rear cover. See “Rear cover removal” on page 4-5.

2. Remove the top cover. See “Top cover removal” on page 4-11.

3. Remove the rear screw (A) securing the left cover to the printer frame.
