Lexmark C925 - Front Logo Cover Removal

To Next Page

To Previous Page

Repair information 4-17

5041-030

Go Back

Front logo cover removal

1. Open the front door.

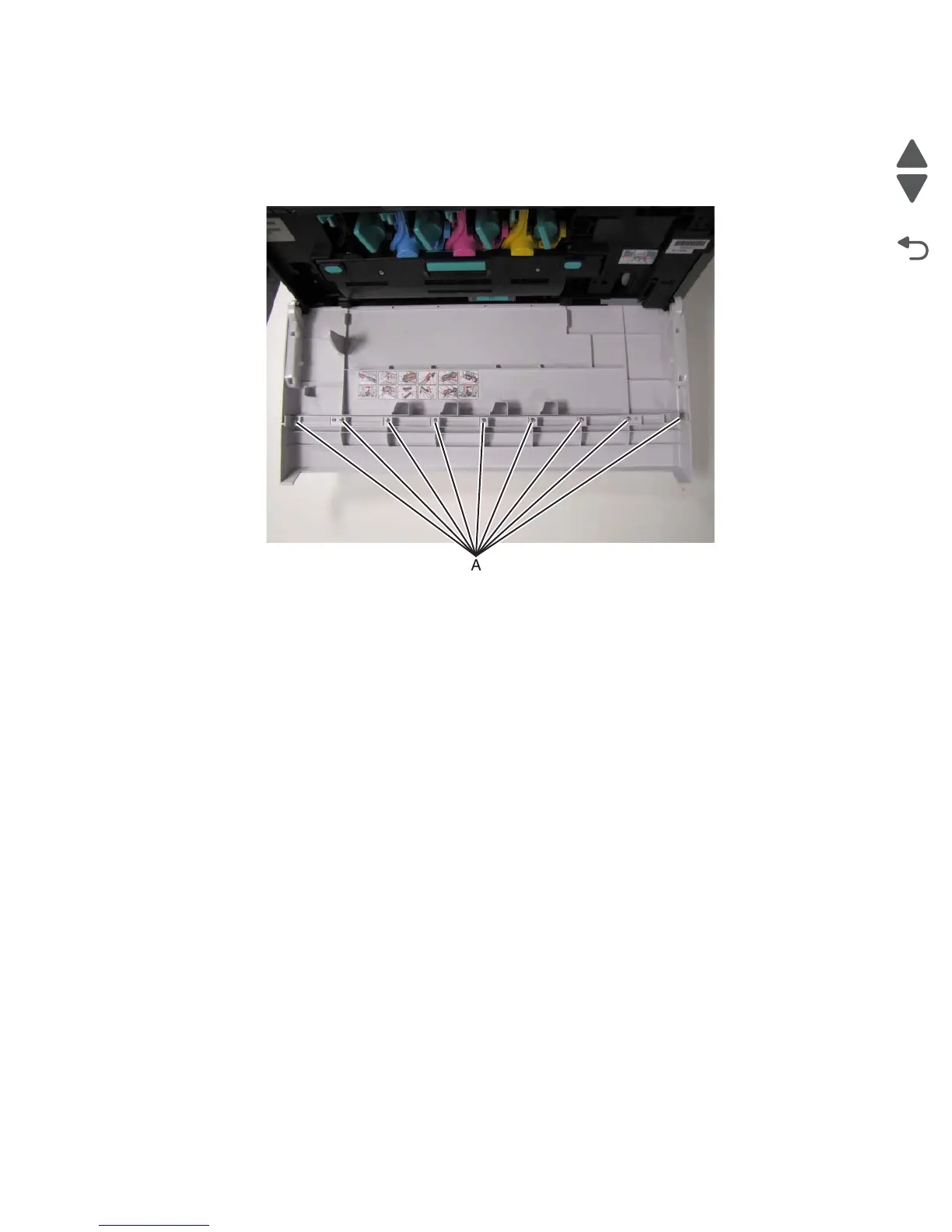

2. Remove the nine screws (A) securing the front logo cover to the front door.
