Repair information 4-37

5041-030

Go Back

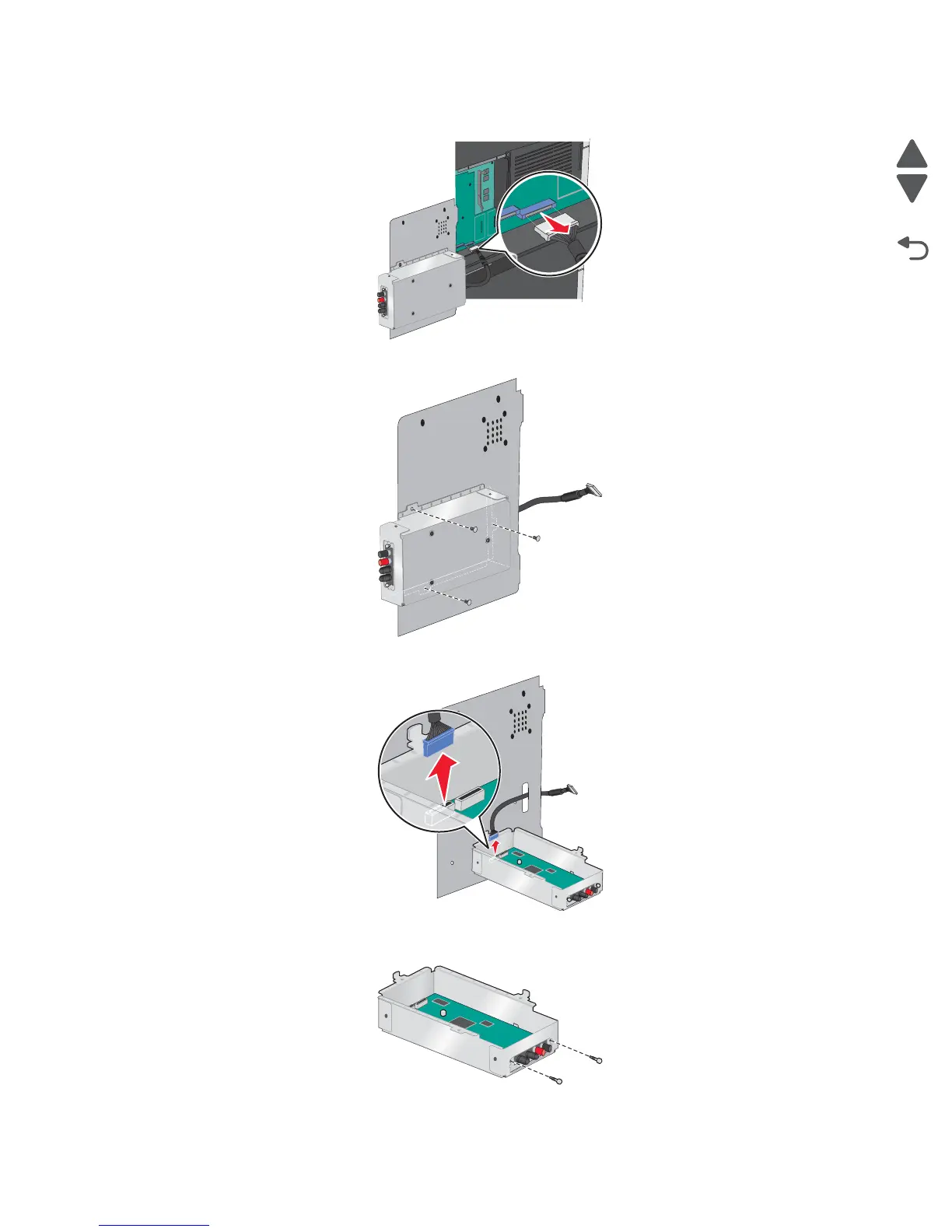

4. Unplug the ISP cable from the RIP board and remove the ISP and RIP cage cover.

5. Remove the screws securing the ISP cover to the RIP cage cover.

6. Tilt the ISP cover down and disconnect the ISP cable from the old ISP board.

7. Remove the thumbscrews securing the ISP solution card to the ISP cage.
