Repair information 4-103

5041-030

Go Back

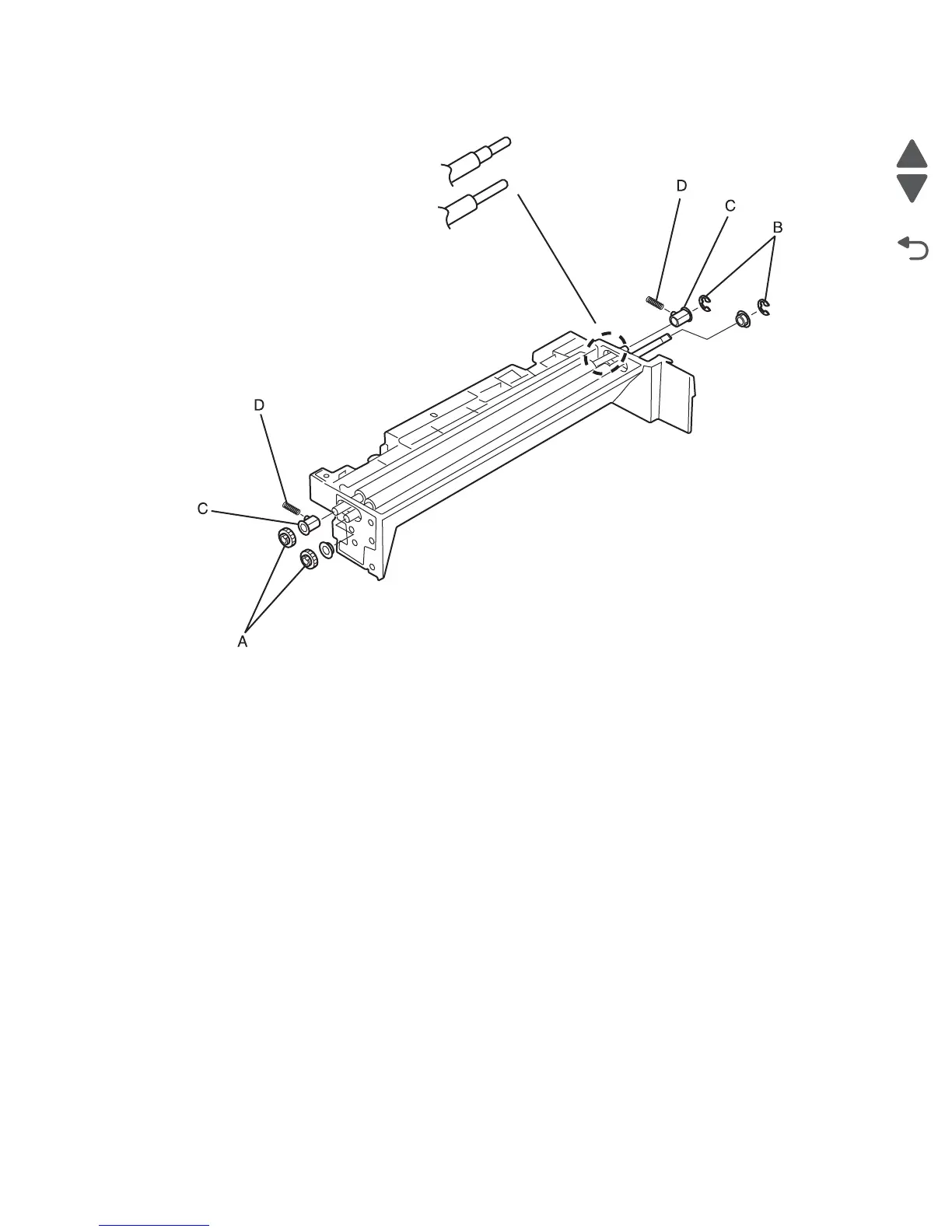

4. Remove the registration gears (A).

5. Remove the e-clips (B).

6. Remove the registration bushings (C).

7. Remove the registration springs (D).
