Repair information 4-111

5041-030

Go Back

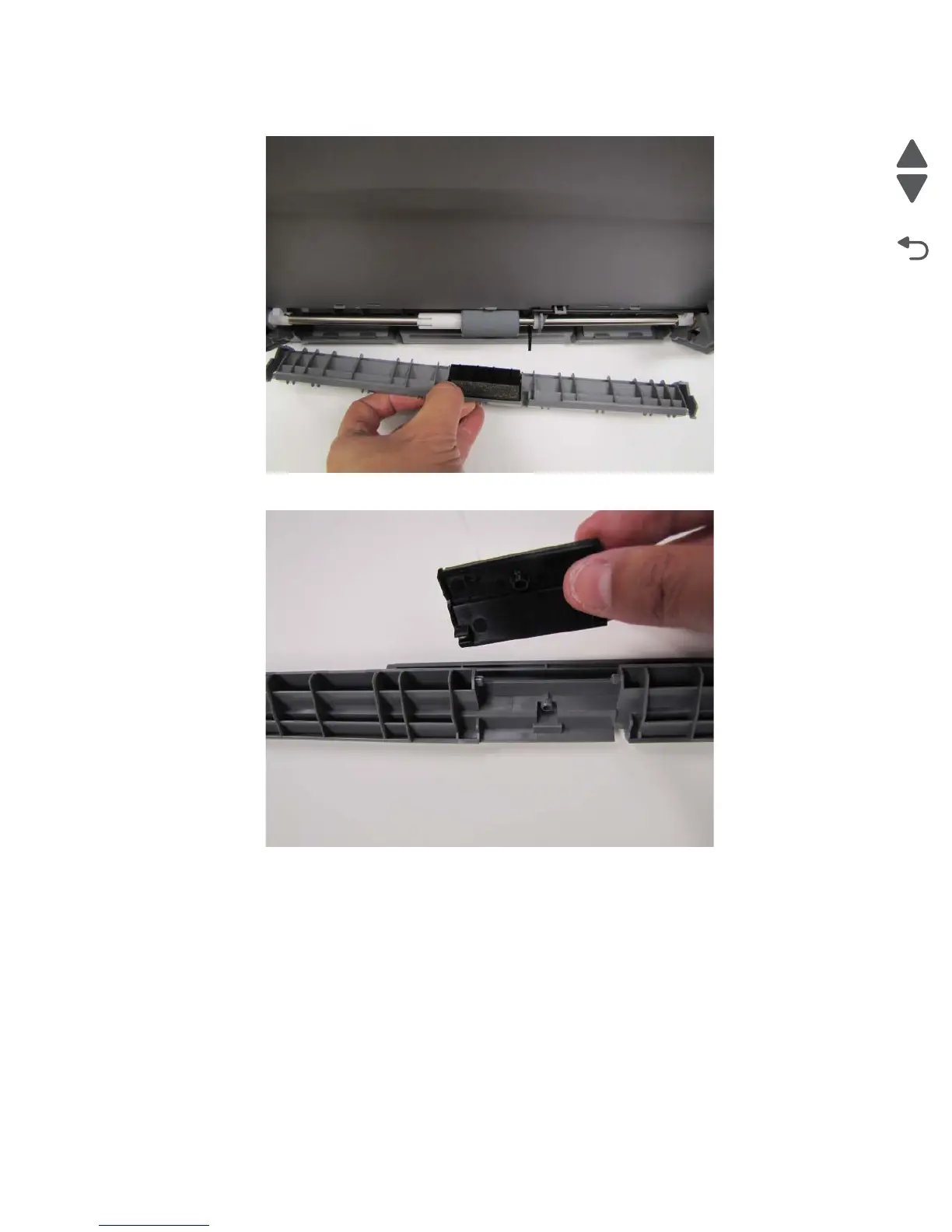

6. Pull the outer pad holder away from the machine.

7. Carefully lift and remove the pad from the pad holder.

Note: Reuse the spring that was between the pad and pad holder.
