Lexmark W850 - Bridge Unit Right Shaft Assembly Removal

Repair information 4-9
4024-XXX
Bridge unit right shaft assembly removal
1. Remove the bridge unit rear cover. See “Bridge unit rear cover removal” on page 4-6.
2. Remove the bridge unit transport belt and bridge unit drive pulley. See “Bridge unit drive belt and bridge
unit drive pulley removal” on page 4-8.

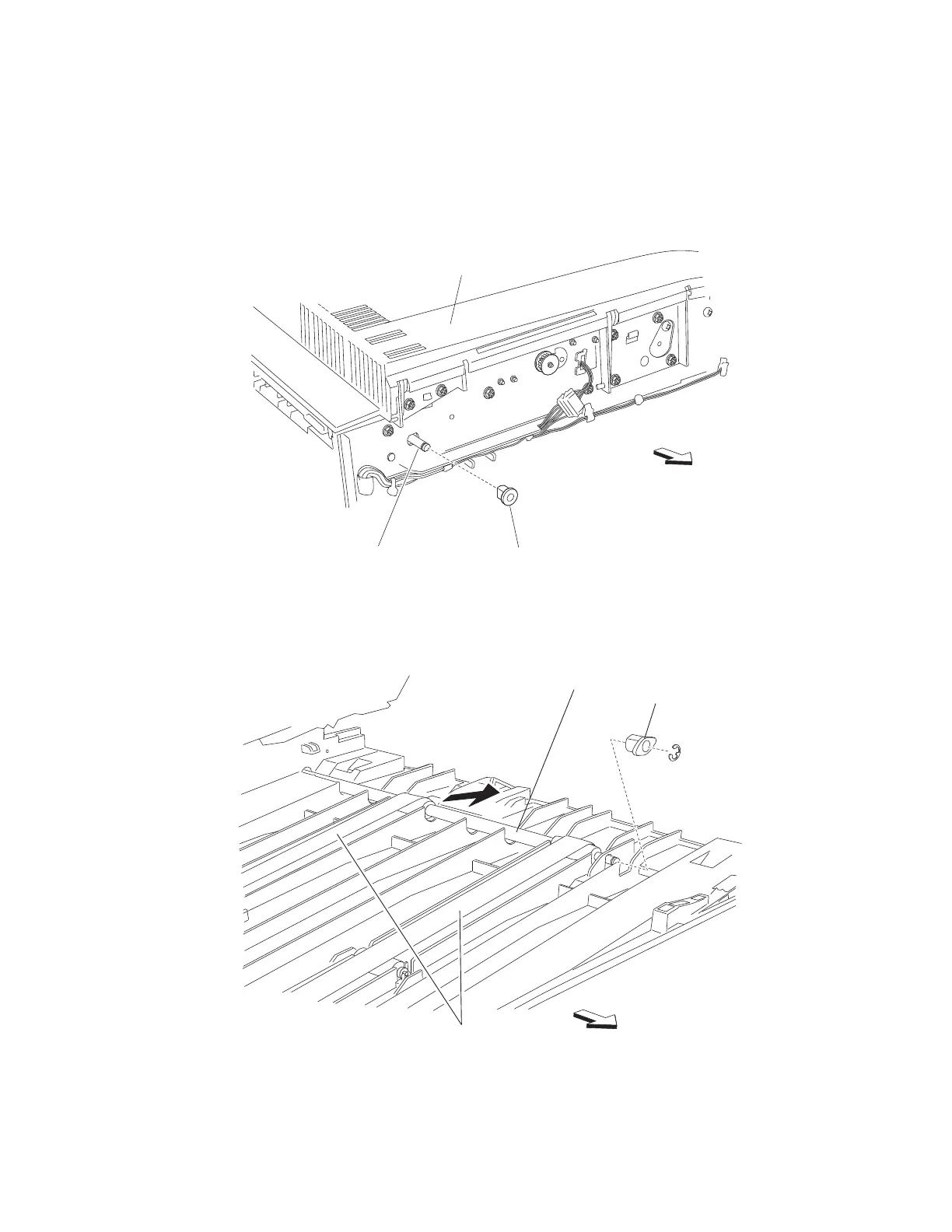

3. Remove the 6 mm bushing (A) from the bridge unit right shaft assembly (B).
4. Open the bridge unit top cover assembly (C).
5. Use a prying tool to remove the e-clip securing the 6 mm bushing (D) to the bridge unit assembly.
6. Remove the 6 mm bushing (D).
7. Move the bridge unit right shaft assembly (B) toward the right as shown.
8. Remove the bridge unit right shaft assembly (B) from the two transport belts (E).
9. Remove the bridge unit right shaft assembly (B).
Rear
A
B
C
B
D
Front
E
