4-72 Finisher Service Manual
4024-XXX
Sensor (front tamper HP) and sensor (rear tamper HP) removals
1. Remove the finisher front door assembly. See “Finisher front door assembly removal” on page 4-27.
2. Remove the rear upper cover. See “Rear upper cover removal” on page 4-24.
3. Remove the rear lower cover. See “Rear lower cover removal” on page 4-23.
4. Remove the upper media bin assembly. See “Upper media bin assembly removal” on page 4-20.
5. Remove the upper media bin vertical cover. See “Right eject cover removal” on page 4-21.
6. Remove the stapler unit frame. See “Stapler unit frame removal” on page 4-54.
7. Remove the media eject clamp motor assembly. See “Media eject clamp motor assembly removal” on
page 4-66.
8. Remove the media eject unit assembly. See “Media eject unit assembly removal” on page 4-59.
9. Remove the media eject motor assembly. See.“Media eject motor assembly removal” on page 4-78
10. Remove the media compiler unit assembly. See “Media compiler unit assembly removal” on
page 4-69.

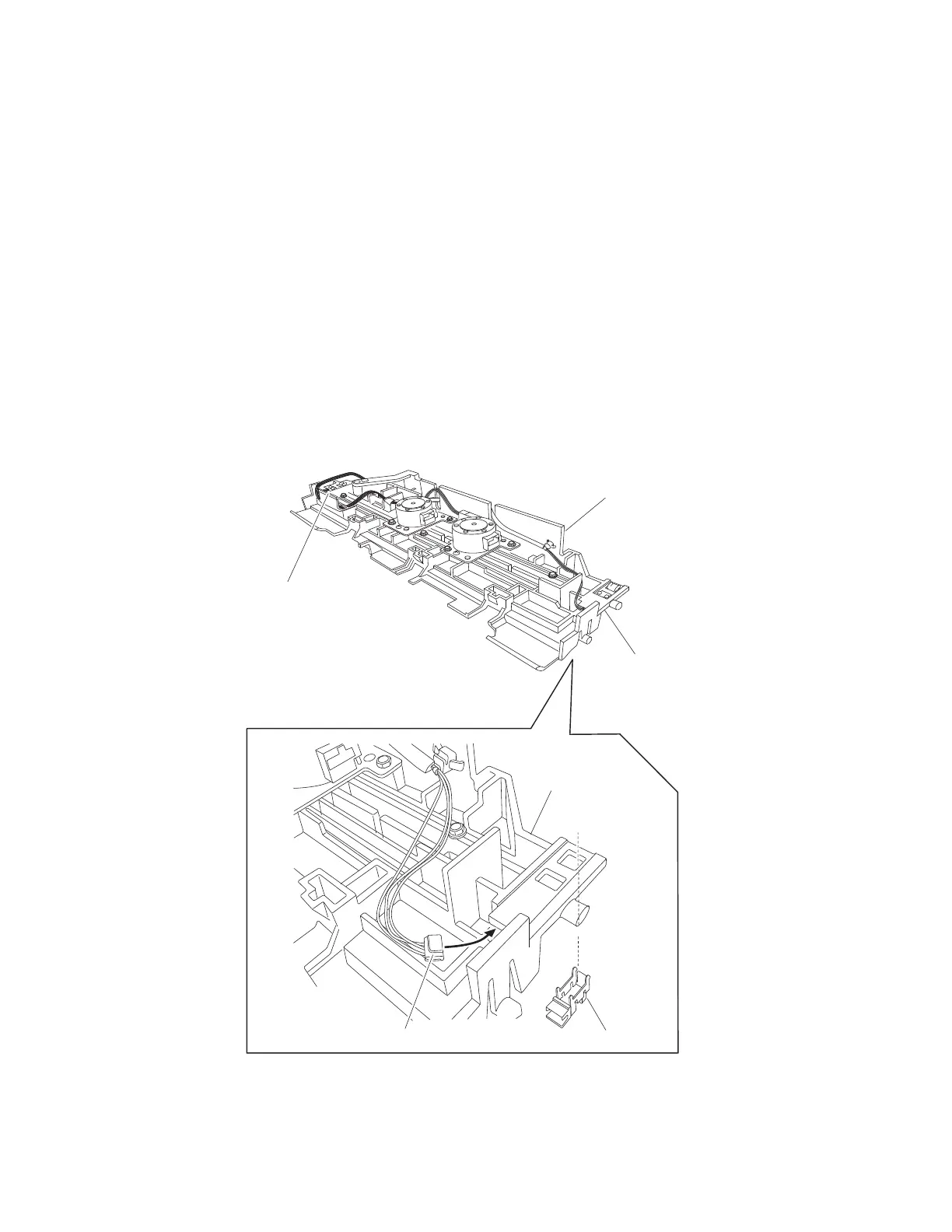

11. Disconnect the connector from the sensor (front tamper HP) (A) or the sensor (rear tamper HP) (B).
12. Release the hooks securing the sensor (front tamper HP) (A) or the sensor (rear tamper HP) (B) from the
media compiler unit assembly (C).
13. Remove the sensor(s).
Note: The sensors are identical.
