4-100 Finisher Service Manual
4024-XXX
16. Move the media entrance roll assembly (H) toward the rear, downward, and then forward.
17. Remove the media entrance roll assembly (H) through the inside of the finisher.
Note: When removing the media entrance roll assembly (H), do not touch the rubber surface.
Replacement notes:
• Make sure the flat spot on the media entrance roll assembly (H) is installed to the rear.
• When replacing the media entrance roll assembly (H), do not touch the rubber surface.
• The tension of the belt (entrance/paddle) (E) is automatically adjusted to the force of the spring attached to
the belt tensioner bracket (D).
• Tighten the two screws in the order shown.
Drive motor (entrance/paddle) and belt (entrance/paddle) removal

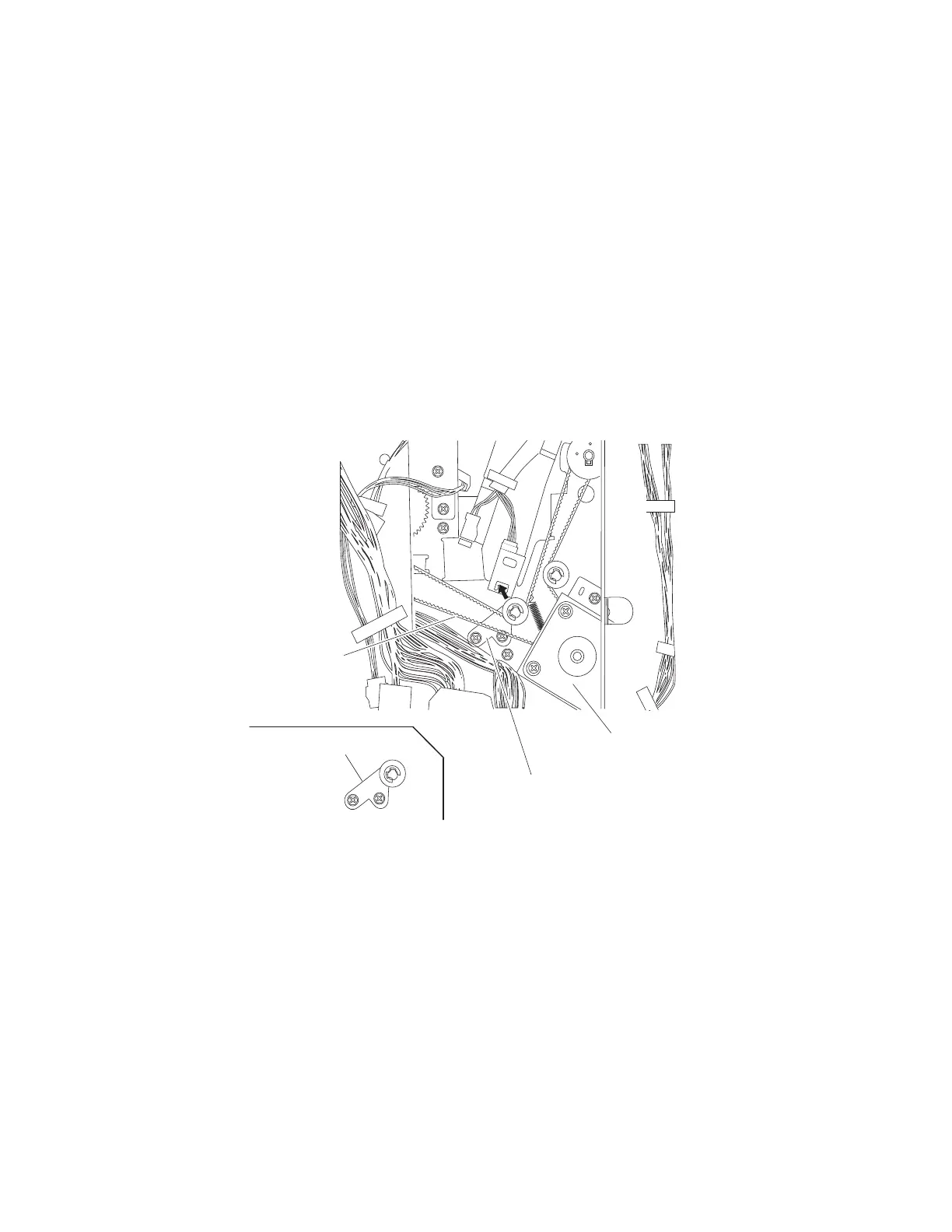

1. Remove the rear upper cover. See “Rear upper cover removal” on page 4-24.
2. Loosen the two screws securing the belt tensioner bracket (A) to the finisher and move upward, as shown.
3. Remove the belt (entrance/paddle) (B) from the drive motor (entrance/paddle) (C).
4. Disconnect the connector from the drive motor (entrance/paddle) (C).
