Repair information 4-41
4024-XXX

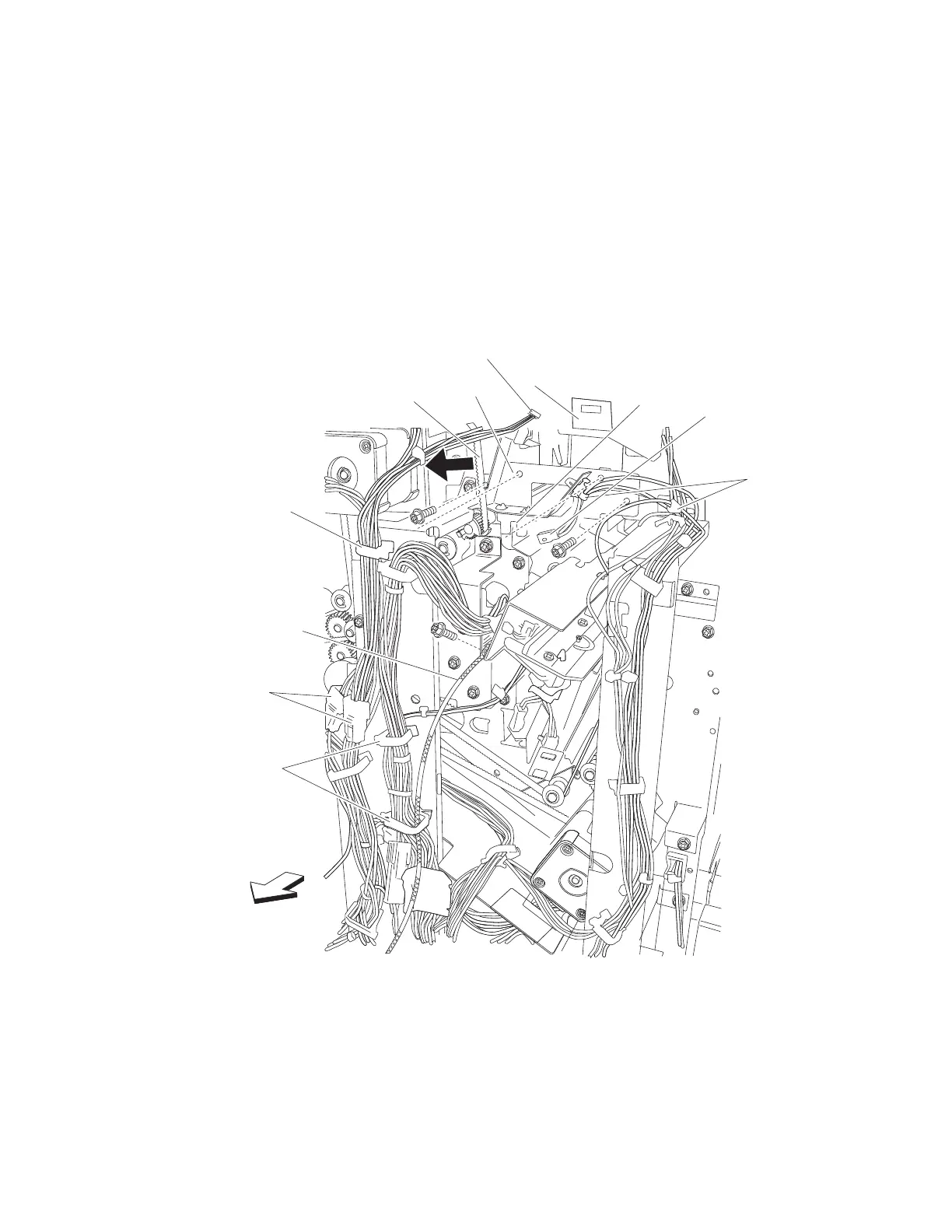

Punch carriage assembly removal
1. Open the finisher front door assembly.
2. Remove the rear upper cover. See “Rear upper cover removal” on page 4-24.
3. Remove the connector from the sensor (punch carriage shift HP) (A).
4. Remove the top cover. See “Top cover removal” on page 4-19.
5. Release the harness from the punch carriage assembly (B).
6. Remove the connector from the punch carriage shift motor assembly (C).
7. Release the two punch unit assembly harnesses from the three clamps on the rear of the finisher.
8. Disconnect the two punch unit assembly harnesses from the main harness.
9. Remove the screw securing the grounding wire (D) to the punch unit carriage assembly (B).
10. Remove the two screws on the rear securing the punch carriage assembly (B) to the finisher.
A
B
E
D
Rear
Clamp
Clamp
Clamp
C
Connectors
Connector
Connector
To Next Page
