4-68 Finisher Service Manual
4024-XXX

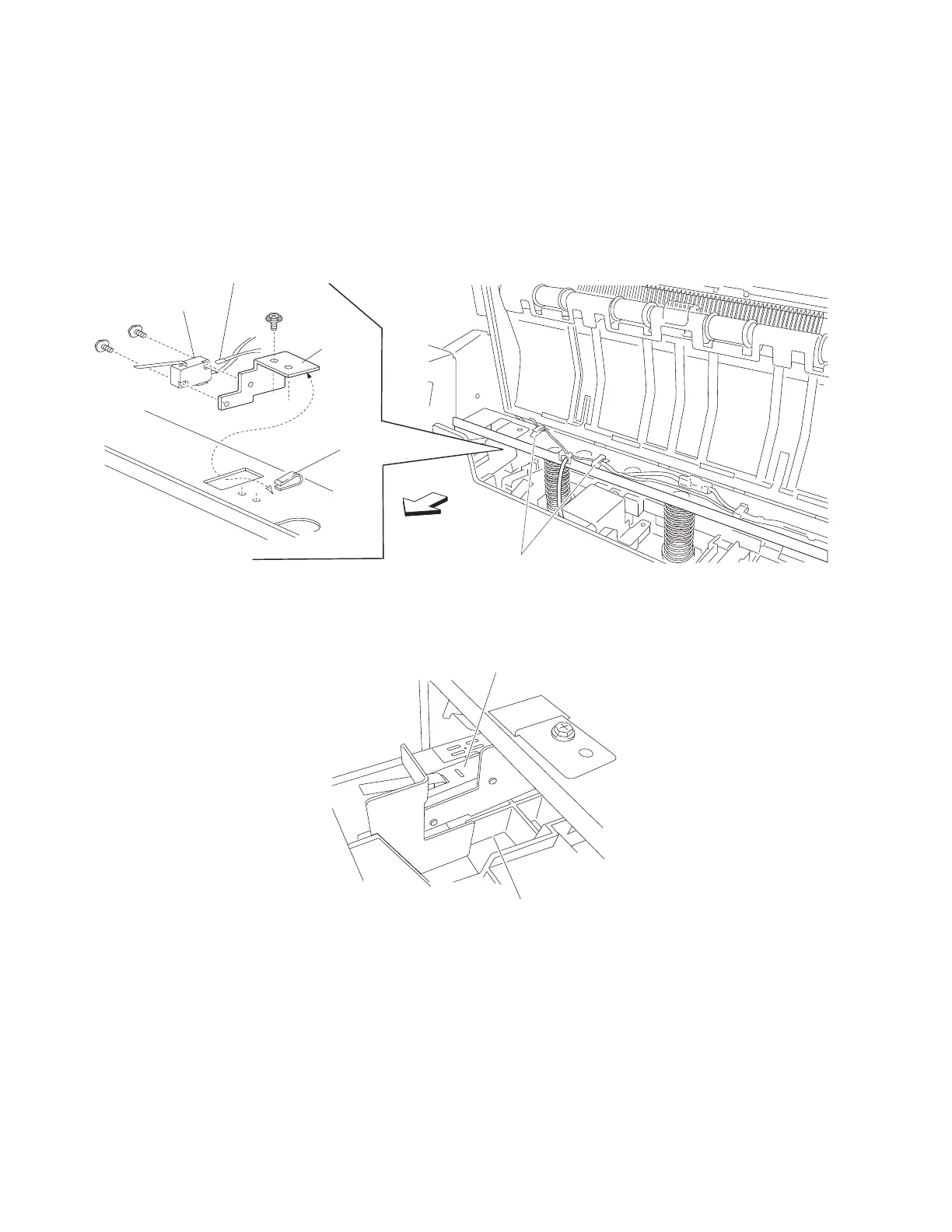

Switch (eject cover interlock) removal
1. Remove the upper media bin assembly. See “Upper media bin assembly removal” on page 4-20.
2. Disconnect the connector from the switch (eject cover interlock) (A).
3. Release the harness from the two clamps.
4. Remove the screw securing the bracket (B) to the finisher.
5. Remove the bracket (B) from the square hole in the finisher.
6. Remove the two screws securing the switch (eject cover interlock) (A) from the bracket (B).
7. Remove the switch (eject cover interlock) (A).
Replacement note: Make sure the media eject unit assembly (C) properly actuates the switch (media eject
interlock) (A) without binding.
Right
A
B
Clamp
Clamps
Connector
To Next Page
