4-38 Finisher Service Manual
4024-XXX
Stacker bin lift motor assembly removal
1. Remove the rear upper cover. See “Rear upper cover removal” on page 4-24.
2. Remove the rear lower cover. See “Rear lower cover removal” on page 4-23.
3. Loosen the four screws securing the plate (A).

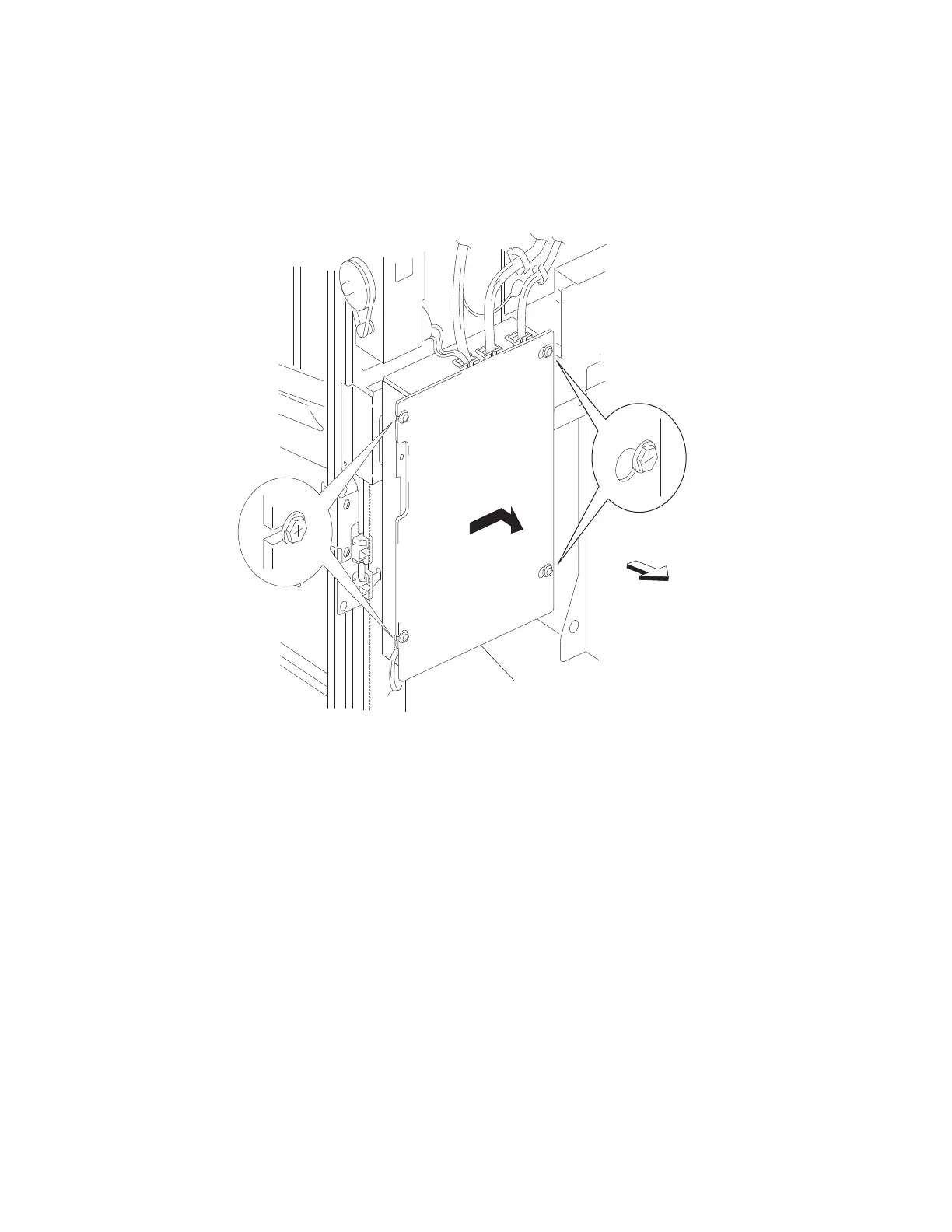

4. Move the plate (A) toward the right as shown.
5. Remove the plate (A).
