Repair information 4-73
4024-XXX
Sensor (compiler media in) removal
1. Remove the finisher front door assembly. See “Finisher front door assembly removal” on page 4-27.
2. Remove the rear upper cover. See “Rear upper cover removal” on page 4-24.
3. Remove the rear lower cover. See “Rear lower cover removal” on page 4-23.
4. Remove the upper media bin assembly. See “Upper media bin assembly removal” on page 4-20.
5. Remove the upper media bin vertical cover. See “Right eject cover removal” on page 4-21.
6. Remove the stapler unit frame. See “Stapler unit frame removal” on page 4-54.
7. Remove the media eject clamp motor assembly. See“Media eject clamp motor assembly removal” on
page 4-66.
8. Remove the media eject unit assembly. See “Media eject unit assembly removal” on page 4-59.
9. Remove the media eject motor assembly. See.“Media eject motor assembly removal” on page 4-78
10. Remove the media compiler unit assembly. See “Media compiler unit assembly removal” on
page 4-69.

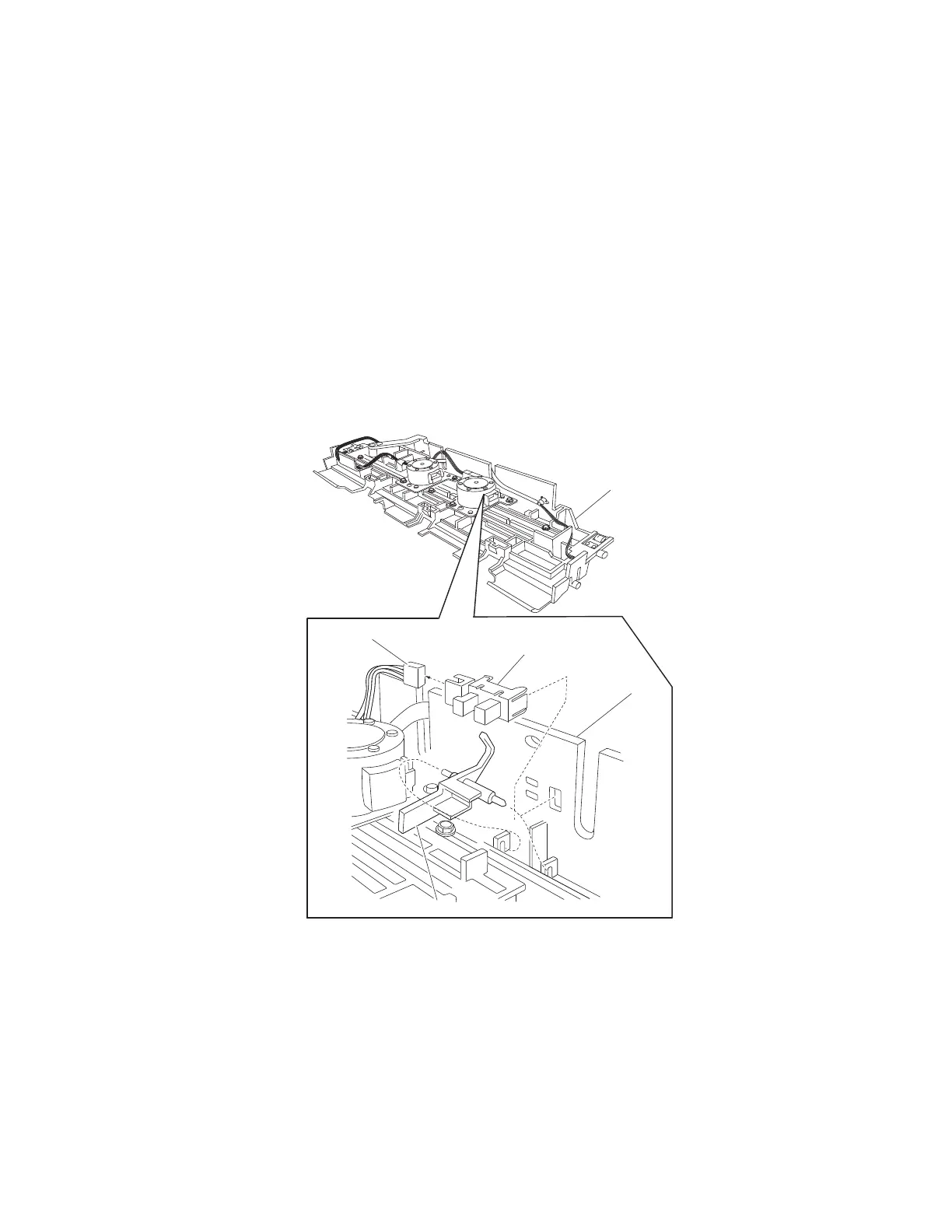

11. Disconnect the connector from the sensor (compiler media in) (A).
12. Release the hooks securing the sensor (compiler media in) (A) to the compiler unit assembly (B).
13. Move the compiler media present actuator (C) downward as shown.
14. Remove the sensor (compiler media present) (A).
